A new manual of perspective: containing remarks on the theory of the art, and its practical application in the procudtion of drawings ... Illustrated by numerous engravings (1849)
Whittock, Nathaniel · London, A. Hall & Co. · leaf 106

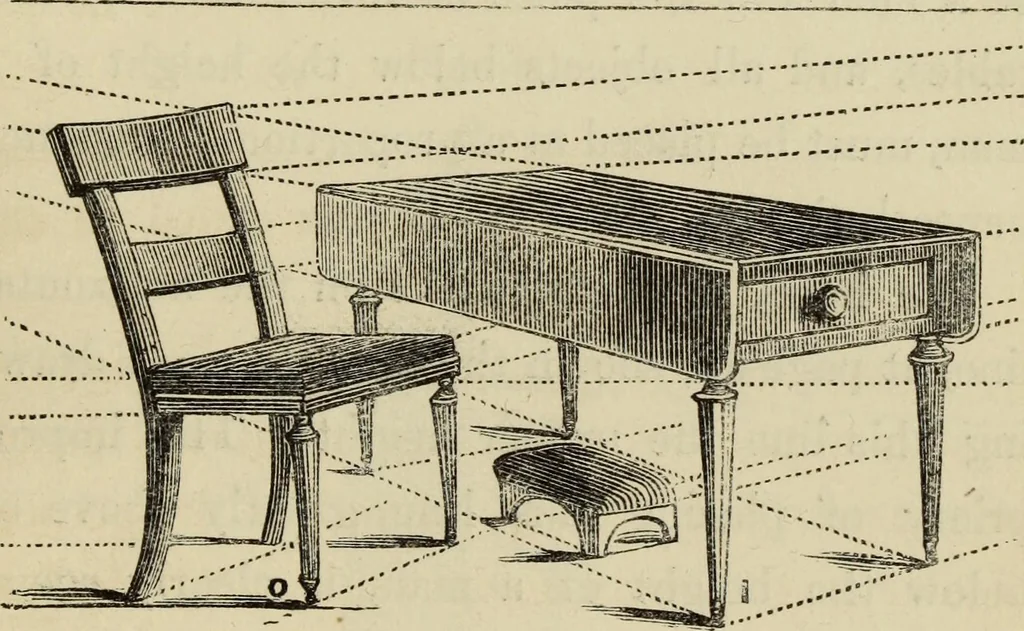

ntly long. If the dotted line at Iis continued till it touches the horizontal line,that will give the point of sight; and the linefrom i, in the contrary direction, will give thepoint of distance. The dotted lines all run tothese points; and, with the diagram before MANUAL OF PERSPECTIVE. 103 him,… … same rules, the subjects introduced will besufficient to enable them to put furniture inany part of the room in perspective. In someold works on perspective the floor is dividedinto squares, as in Operation 5, and the furni-ture marked on the squares. There is not the 104 MANUAL OF PERSPECTIVE.…
Perspective
