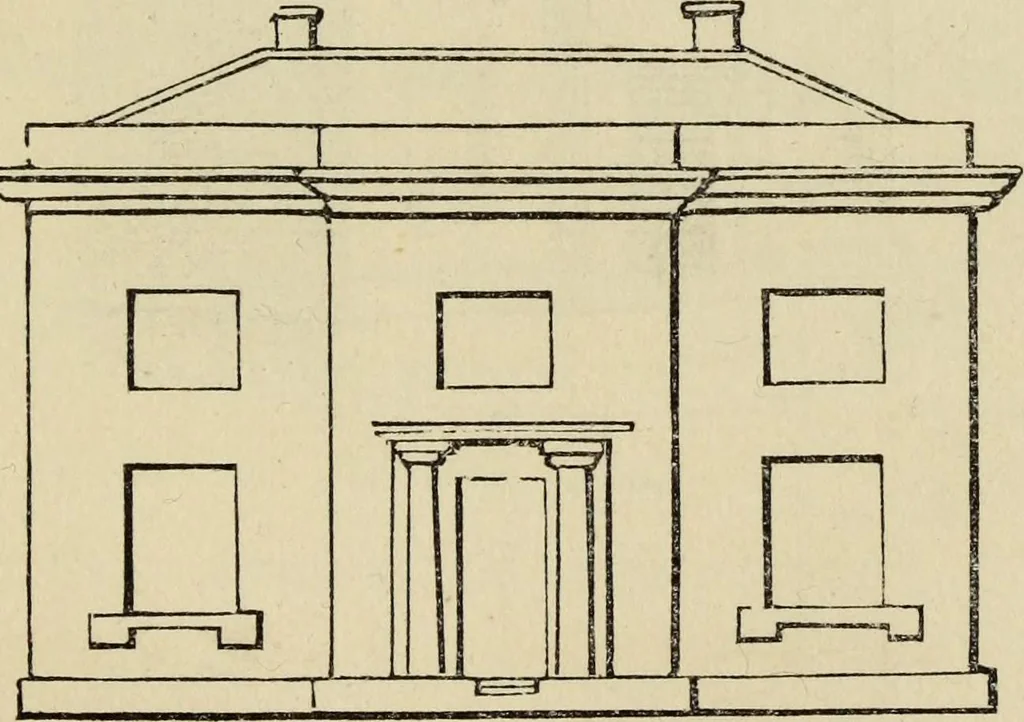

ts at equal distances from it on the line;mark those points b and c. Remove the sharppoint of the compasses to b, and extend thepencil point to c; then draw the curvedline c d ; reverse the legs of the compasses,placing the sharp point on c and the pencilon b ; draw the curve b d, letting the… … A drawing seen directly in front, where allthe lines running in an horizontal direction are 28 MANUAL OF PERSPECTIVE. parallel to the base line, is said to be an eleva-tion of a building. Only one side of a buildingcan be shown in elevation, as may be seen inthe preceding engraving of the drawing…
