A new and original treatise on the geometrical development of round and oval cones, with easy examples of their application : for the use of beginners and practical sheet iron and tin plate workers (1904)
Fuller, John, b. 1833 · New York : D. Williams · leaf 16

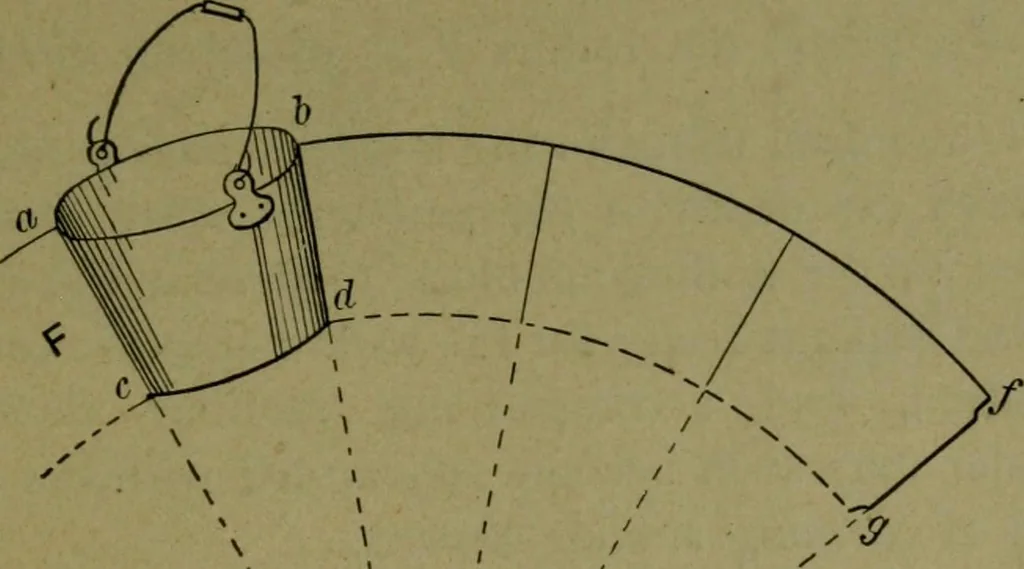

i ; then e d, or 7%, is the diameter of the inside orsmall end of the foot H, and also the inner radius ofthe semicircular ring from which the foot H is formedfunnel fashion. The foot may be any depth to suit thetaste, although one-fourth the depth of the body, or 2inches in this case, is… … Fig.8 1 / 1 / \ € 1 / 1 / / / / / s \\
Sheet-metal · Geometry, Descriptive
