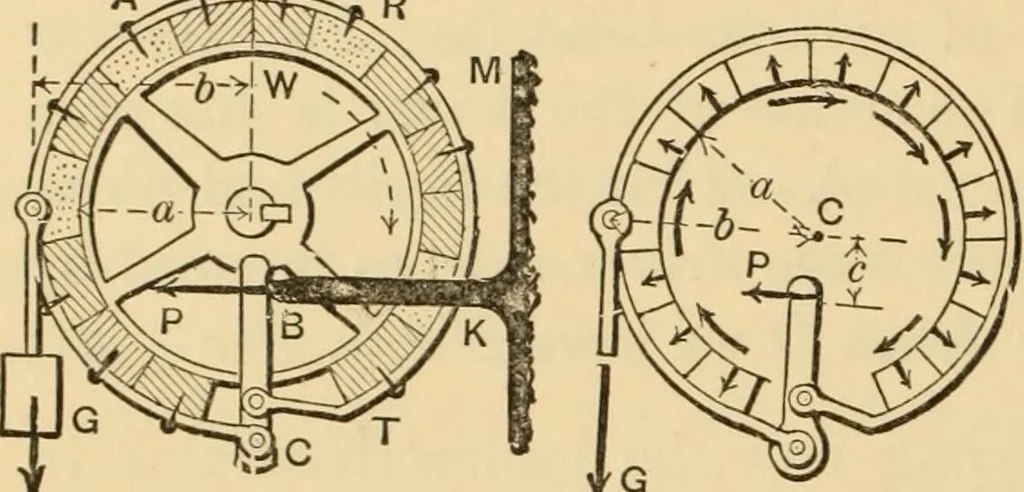

An illustration from Notes and examples in mechanics; with an appendix on the graphical statics of mechanism;, 1897, leaf 105 — a^ about G. Hence, by equilibriumof moments, Fa = Gl) — Pc, where 7^ is the sum of the frictions.Evidently the pressure P at the end of the lever should beknown, for accuracy. (See correspondence in the London Engineer^ from Novem-ber, 1887, to March, 1888.) Hence if v is the velocity (ft. per sec.… … THE CARPENTIER DYl^AMOMETER. 97
