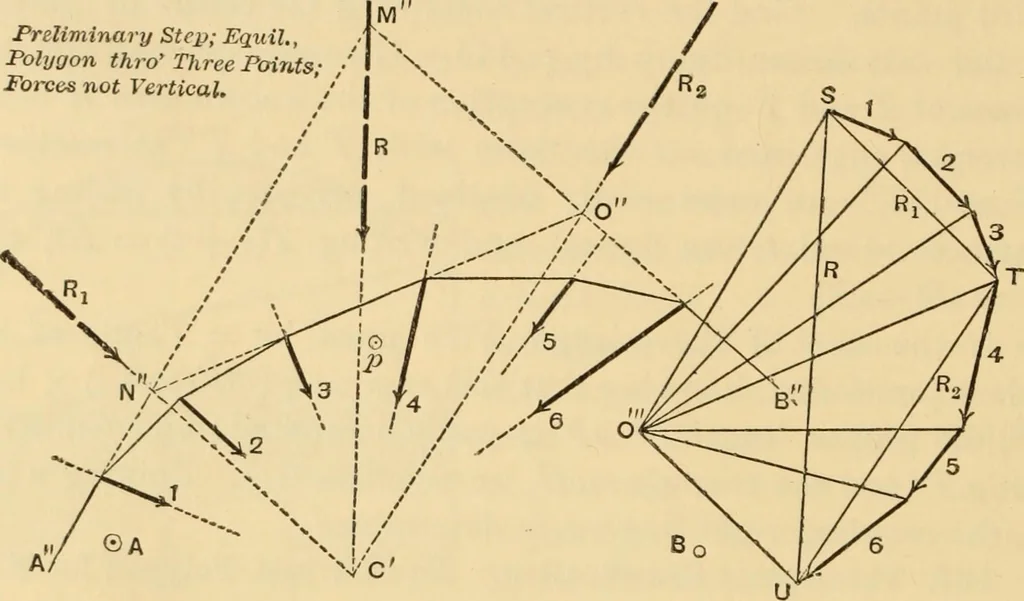

necting forces3 and 4 (in this particular instance), parallel to 0T, The inter-section of the first and last segments gives M\ a point in the 118 NOTES AND EXAMPLES IN MECHANICS, action-line of E, the resultant of all the given forces, 1 . . 6; andsimilarly, the other intersections H and 0 are… … Fig. 128, should meet in a common point C\ and are the respective action-lines desired. The further steps are those given on pp. 460 and 461, M. ofE. Our present equilibrium polygon, AB, is of no furtheruse ; but the load-line STU will still serve, after the lines MAand MB have been located…
