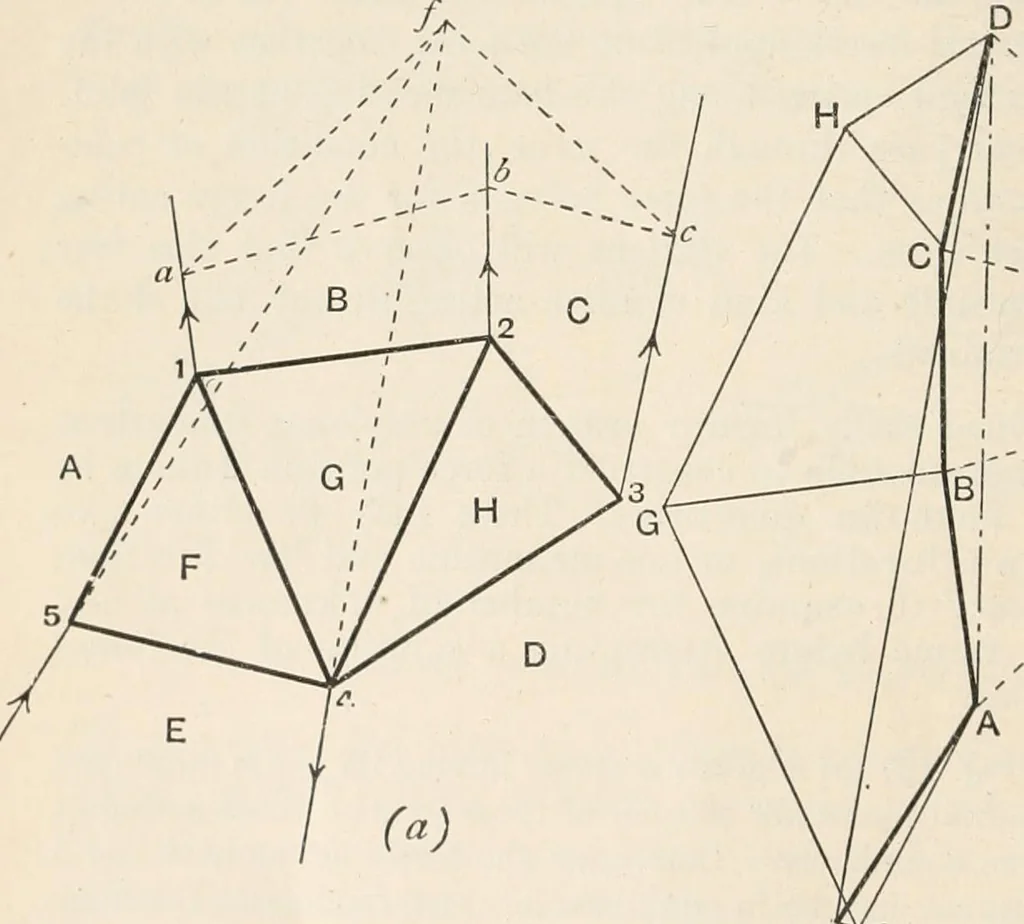

ing a point a onthe line of the force AB, and drawing ab and be parallel to OB and OCrespectively in Fig. 167 (6). From a draw of parallel to OA, and fromc draw c/parallel to OD ; these lines intersect at/, and the resultant forcerepresented by DA must pass through /. Now this force is the… … •0 bar (fa is al T illsola portat t. (b) Fig. 167.—Equilibrium of a rigid frame. The force polygon in Fig. 167 (b) may be closed now by drawing DEparallel to the lino A and AE parallel to the line/5. DE and EA givecompletely the forces acting at joints 4 and 5 respectively. The forces in the bars…
