Notes and examples in mechanics; with an appendix on the graphical statics of mechanism; (1897)
Church, Irving P. (Irving Porter), 1851-1931 · New York, J. Wiley & Sons · leaf 65

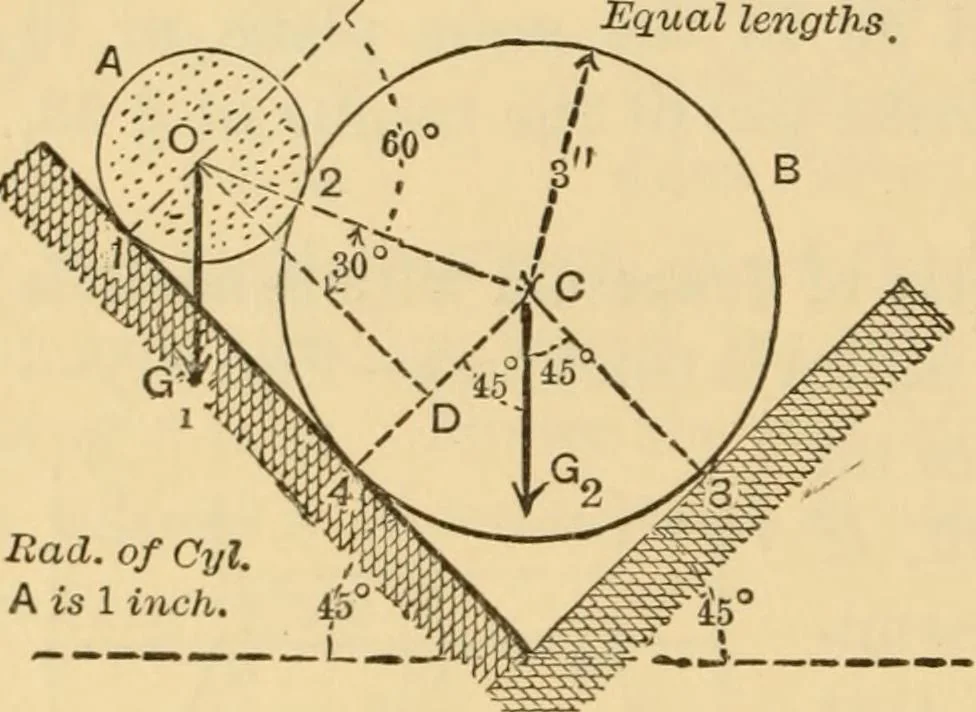

16 + 2016 + 10 = 2.77 in.; = 8 in.; while (see p. 23, M. of E.) y = and X = OD — |- X 2.77 = 7.54 in. {fi bisects the base MN \ conceive perpendiculars let fallfrom C and E upon OK^ and use the similar triangles so formedin obtaining the value of x.) From eq. (3), p. 19, M. of E., since the… … Had. of Cyl. A is I inch. 4o i : [78 X 2.77 - 6.28 x 0.S5] ^ 71.71 = 2.94 Example 4. Stability of Two Cylinders.—Fig. 62 gives anTwo Cylinders, end vlew of two smooth and ho-mogeneous circular cylinders ofequal length (= I in feet) but ofradii 1 in. and 3 in., respectively.A weighs 800 lbs. per…
