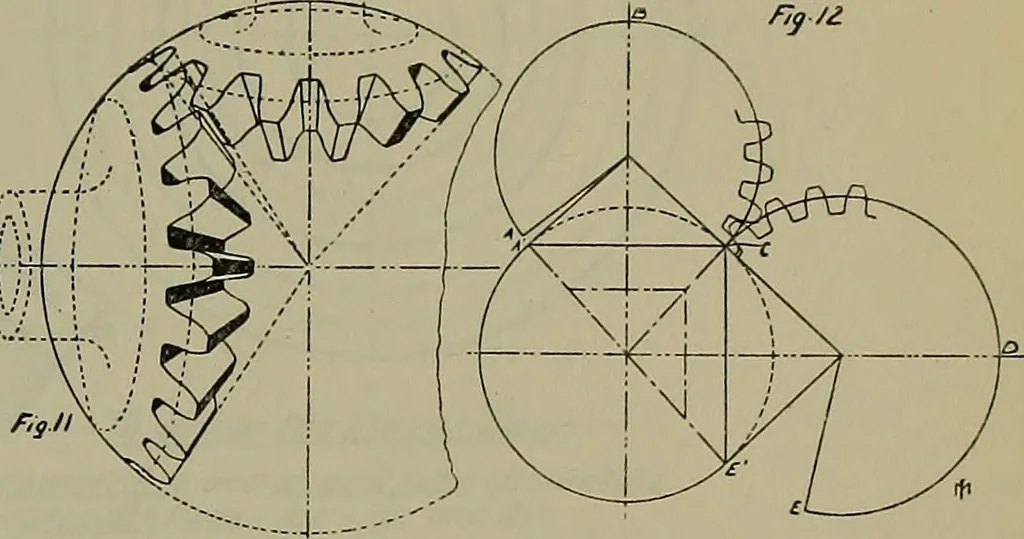

0^ To be theoretically exact, the tooth curves should betraced upon the surface of a sphere, as shown in Fis^-.II. This method is not practical, however, and hasno advantage over what is known as Tredgolds ap-proximation, which is much simpler and is universallvused. By this method the tooth curves… … The method of laying out the bevel gear blank isshown in Fig. 13. MECHANICAL DRAWING 85
