Notes for mechanical drawing; arranged for the use of the students of the Mechanic arts high school and the Evening school of trades (1904)

Mathewson, Frank E. (Frank Elliott), b. 1869 · Springfield, Mass. · leaf 36

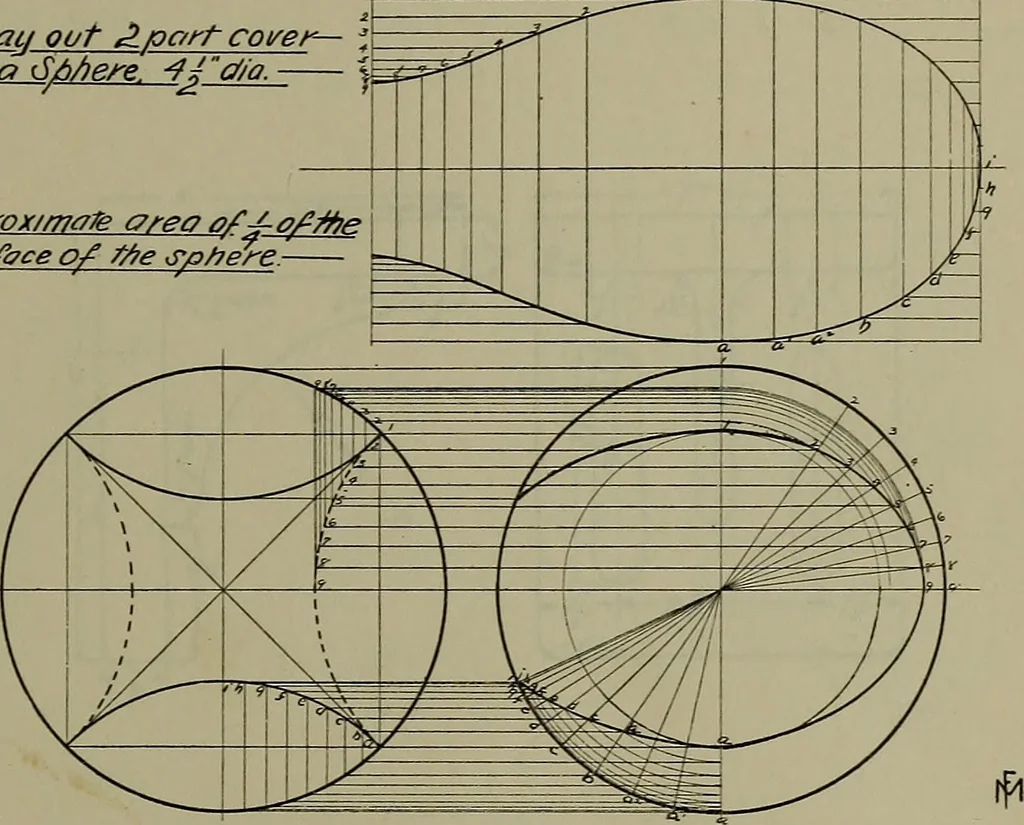

An illustration from Notes for mechanical drawing; arranged for the use of the students of the Mechanic arts high school and the Evening school of trades, 1904, leaf 36 — MECHANICAL DRAWING 15 —7b /ay out ,^pc/rf- cot/er— \.-for o iS/b/)ere. ^J^cf/a.-— … MECHANICAL DRAWING 16 Angle Iron Make drawing io scale full size

Mechanical drawing
