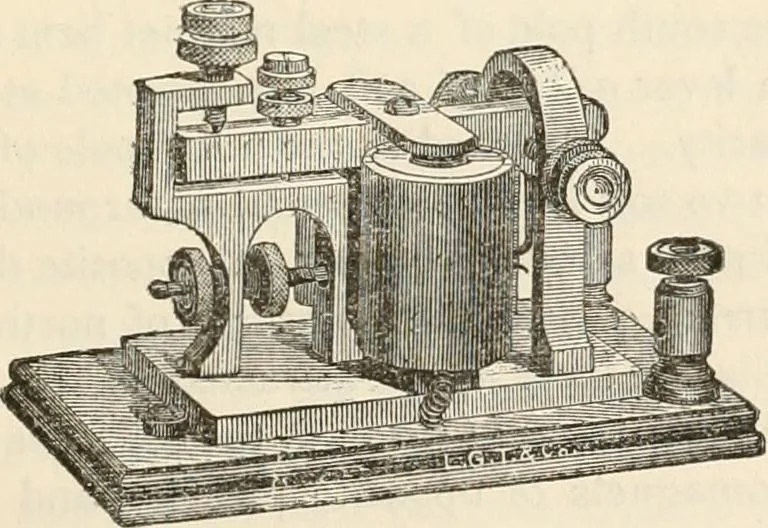

~Fig- 35.—Relay. direction, the relay works for every signal from which eveiway it may come. In the open-circuit system a relay isnecessary for messages in each direction. The WesternUnion relay is shown in Fig. 35. The printing receiver or embosser is but little used inAmerica, messages being read… … Fig. 36.—Sounder.consists of two electromagnets which attract an armature 134 NOTES ON whenever the local current passes. The armature is at-tached to a lever, which makes a sharp click by strikingagainst a stop whenever the armature moves. After alittle practice the operator can read the message…
