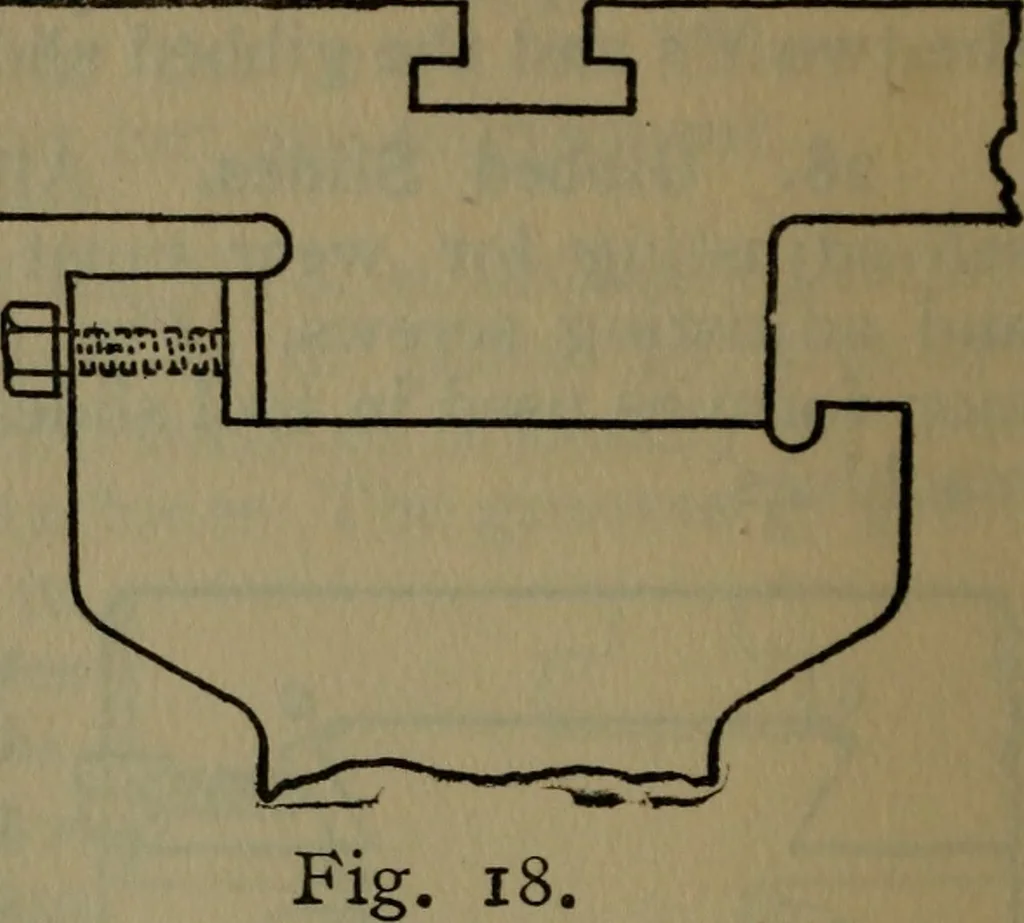

htly tapering and adjusted by a screw Fig. 17. and nut giving endwise motion. 29. Flat Slides. This type of slide requires ad-justment in two directions and is usually providedwith gibs and adjusting screws. Flat ways on ma-chine tools are the rule in English practice and aregradually coming into… … S6 Fig. 18 illustrateschine. The otherway would be simi-lar to this but with-out adjustment.The normal pres-sure and the fric-tion are less thanwith angularways and noamount of sidepressure will liftthe platen fromits position. Fig. 19 shows a portion of the ram of a shapingmachine and illustrates…
