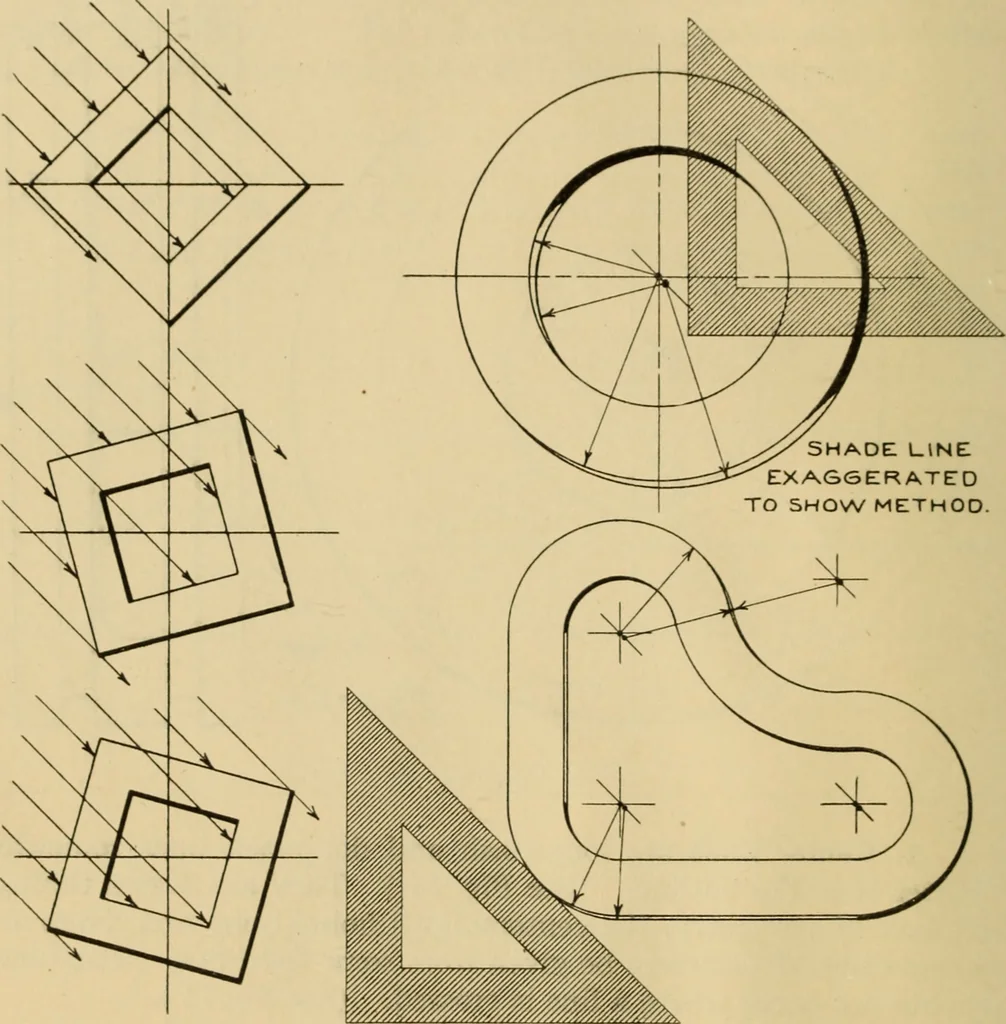

should not touch the pointsbetween which they are drawn. 10. Adjacent part lines are drawn like construction lines.They are used to show a part that is adjacent to the piece drawn. 14 SHADE LINES. 1. To distinguish readily between depressedand raised portions of an object, and to make the drawings… … Fig. 14. the paper as shown by the arrow^s to the left in Fig. 14. The divi-sion between light and dark surfaces is indicated by a heavy Hneabout three times as thick as the outline. No account is taken ofthe shadows cast by one portion of the object upon another. In many cases the position of…
