Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 154

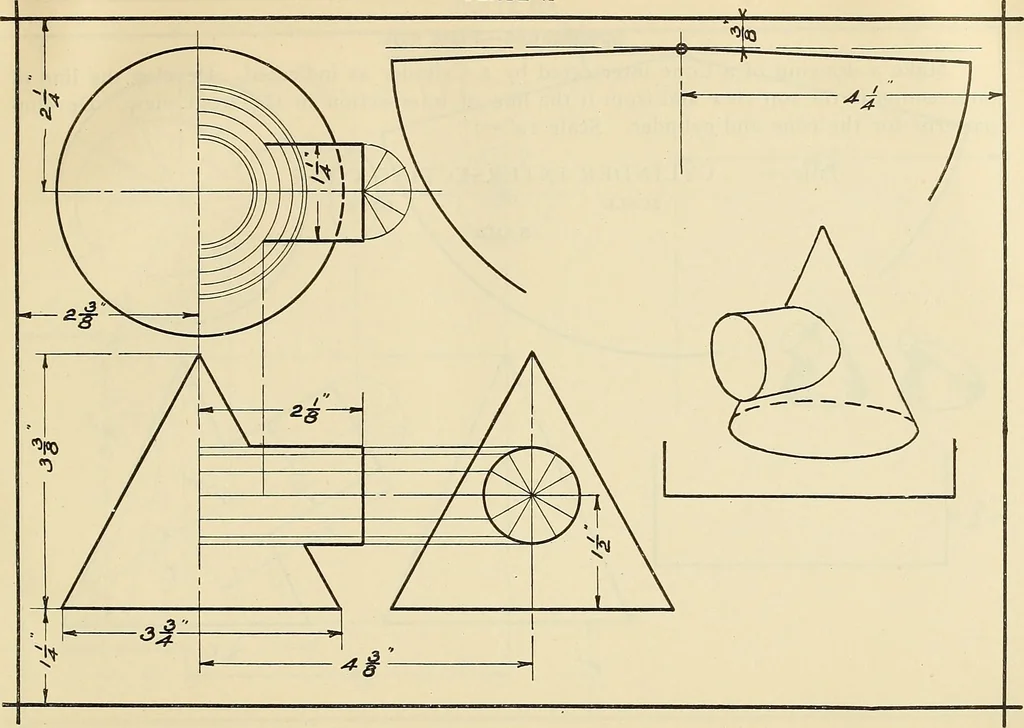

150 MECHANICAL DRAWING PROBLEMS Specification—Plate 41. Make a drawing of a Cone intersected by a Cylinder as indicated. Develop the line ofintersection in the top view and from it the line of intersection in the front view. Developpatterns for the cone and cylinder. Scale I2=i. Title:— CYLINDER… … 152 MECHANICAL DRAWING PROBLEMS Specification—Plate 41A. Make a drawing of a Cone intersected by a Cylinder as indicated. Develop the line ofintersection in the top view and from it the line of intersection in the front view. Developpatterns for the cone and cylinder. Scale I2=i. Title:— CYLINDER…
