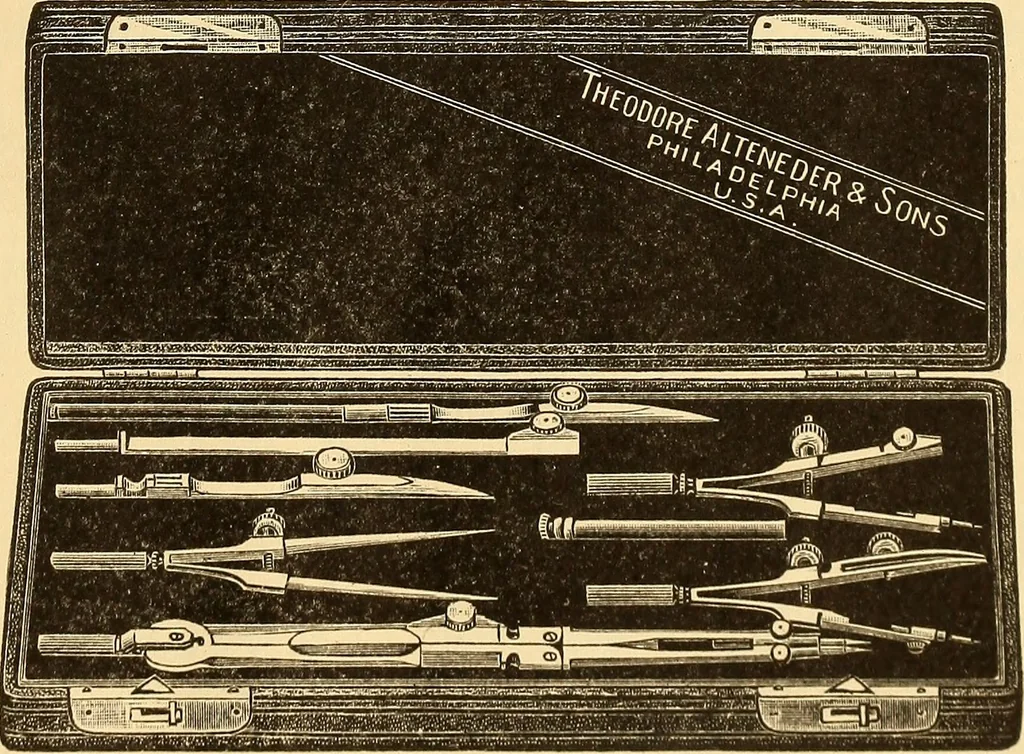

owing articlesbefore he will be allowed to begin his work: A. Drawing instruments contained in set No. 2050 made byTheo. Alteneder & Sons, Philadelphia, as follows: No. 1404, 5| compass, pen, pencil and lengthening bar, fixed needle point leg.No. 1530, 3J bow spacer.No. 1532, 3J bow pencil with… … Fig. 1. B. Triangular Box-wood scale having the following scales thereon: 12, 9\ 6\ V, 3, 2\ \Y to the foot, and 50 parts to theinch divided the full length of the scale. C. One 8—45° celluloid triangle. Not less than ~h thick.One 12—60° celluloid triangle. Not less than ,Y thick. (5) D. F.G. H.I.…
Mechanical drawing
