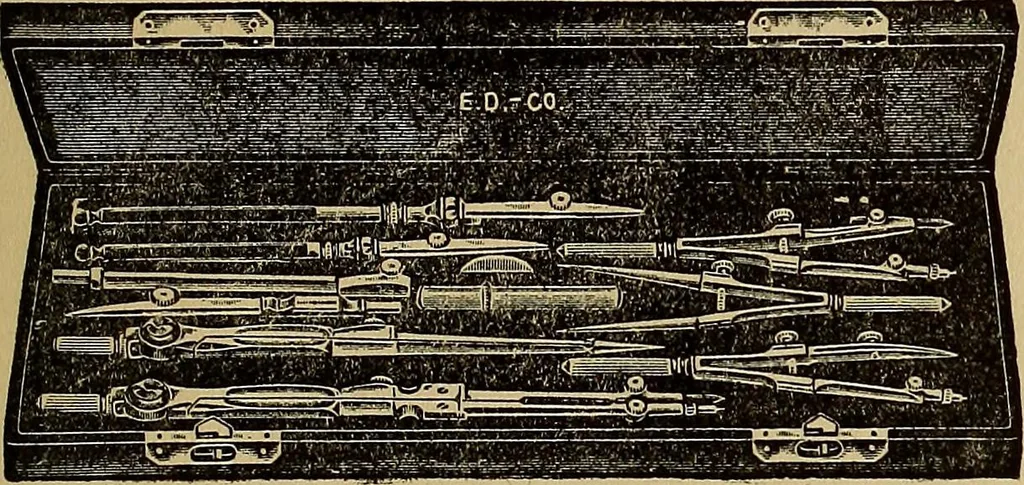

ition ofthe T-square and triangle will avoid any possibil- DRAFTING TOOLS 11 ity of the shadows of the T-square blade or tri-angle being cast on the lines to be drawn. Sharpening a Ruling Pen. The blades of thepen should be curved at the points, and ellipticalin shape. To sharpen the pen, screw the… … Pig. 11—Complete Set of Instruments in Case. elliptical form. When this form has been secured,draw a folded piece of the finest emery paper twoor three times between the blades, which arepressed together by the screw. This will removeany roughness from the inner surfaces of theblades, these…
