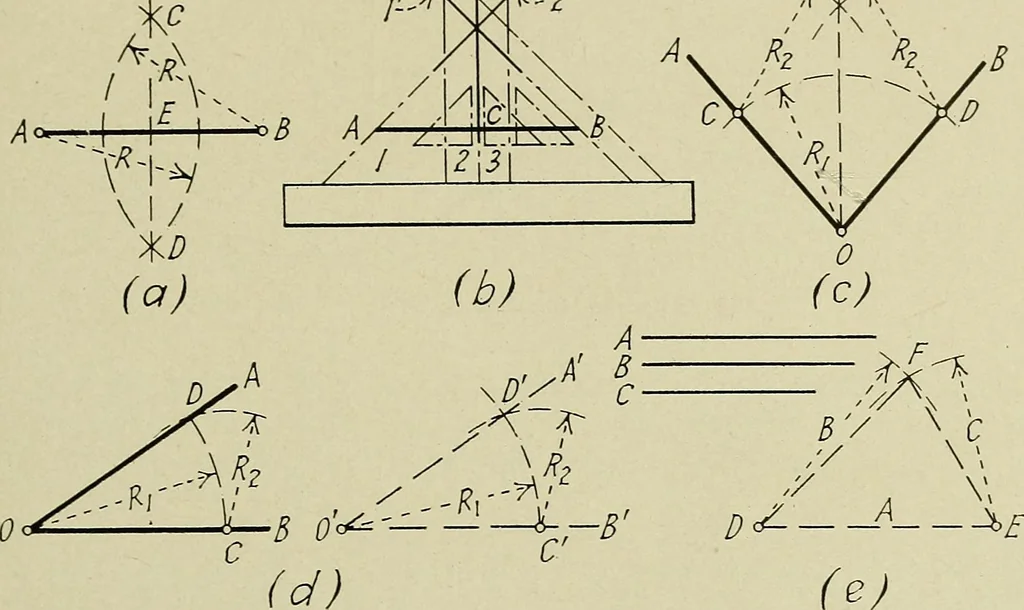

using the triangles (Fig. 7a). The intersections with AB will formthe desired divisions. To Bisect an Angle.—(Fig. 82c.) Given the angle AOB. With 0as a center and any radius R, strike an are to obtain intersections C andD. With C and D as centers and any radius R._, strike arcs intersectingat E.… … Fig. 82. To Construct a Triangle.— (Fig. 82e.) Given the sides B and C asradii strike arcs intersecting at F. Draw DF and EF. .-Line to be divided -t—/—t
