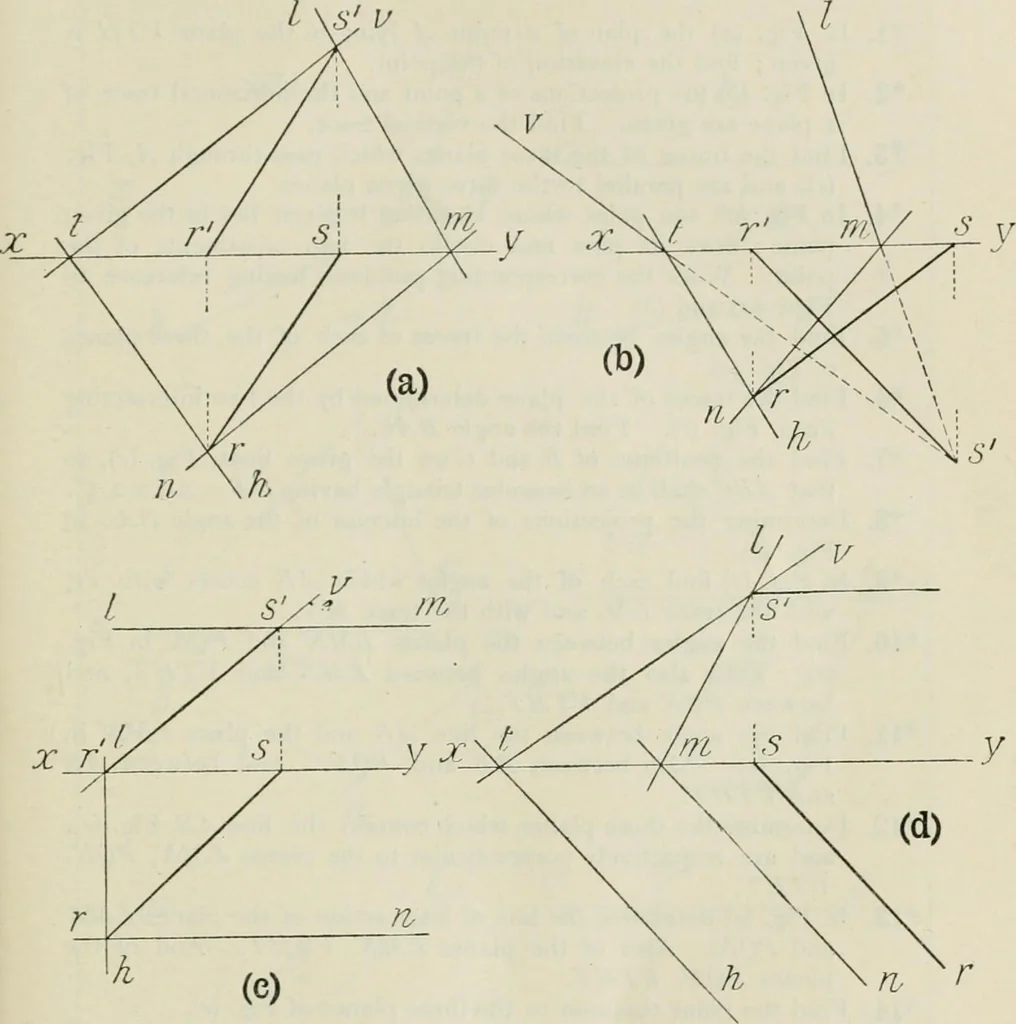

projections of LN, the line of inter-section of the planes L TN and LMN. Find the inclinations of LN to the planes of projection. 2. Two vertical planes meet xy at points 2 apart, and the planes make angles of 55° and 400 respectively with xy. Draw theplan and elevation of their intersection. 3. An… … 4. Take any point in the intersection of Ex. 3 and draw the pro- jections of a line passing through this point, lying in the obliqueplane, and making an angle of 55° with the intersection.Hint.—Rabat the oblique plane about its horizontal trace. 5. Draw the projections of a line AB inclined at 35°…
