Fry, Horace Pugh. [from old catalog] · Philadelphia · leaf 21

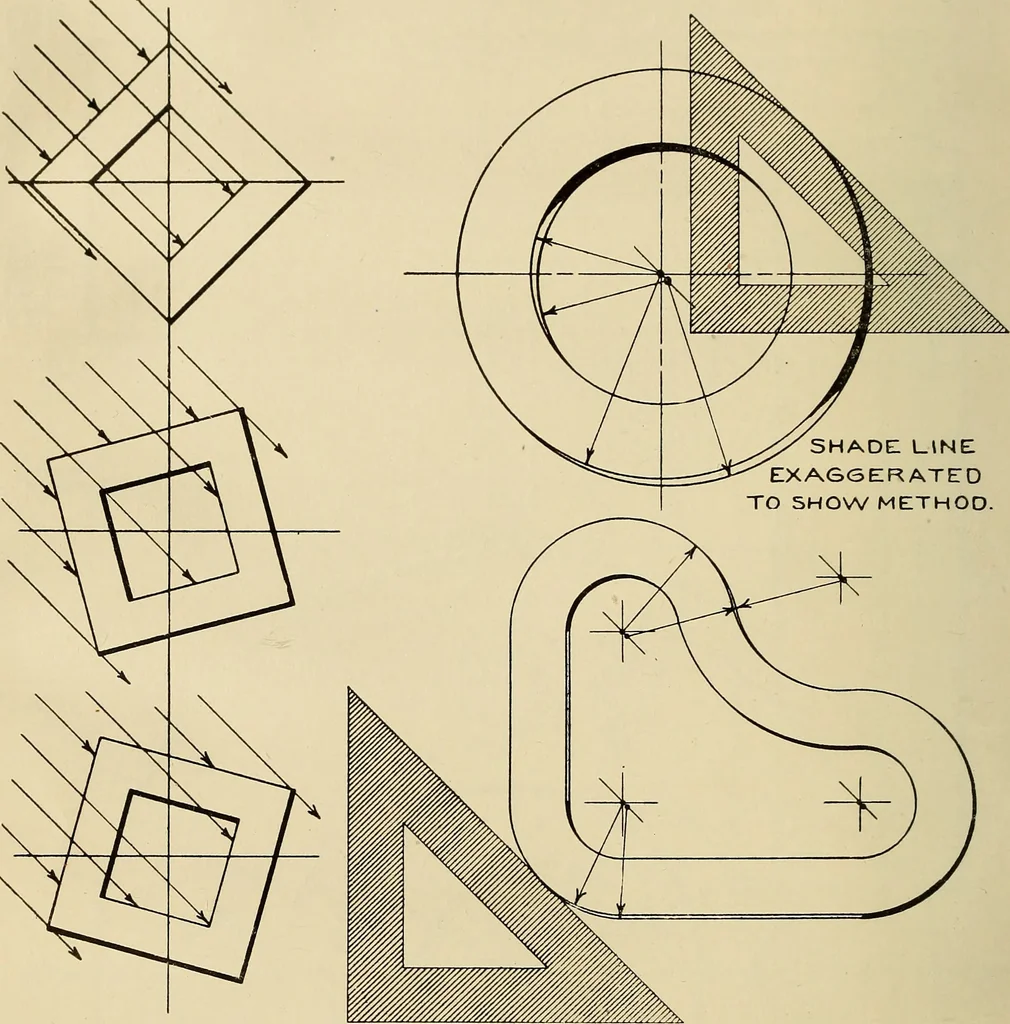

18 9. Construction lines (see Fig. 13) are fine dash lines andare used largely in elementary work; they connect the projectionson two adjacent planes. These lines should not touch the pointsbetween which they are drawn. (See Figs. 9 and 10.) … Fig. 16. 10. Adjacent part lines are drawn like construction lines.They are used to show a part that is adjacent to the piece drawn. 11. Extension lines are full light lines used to prolong thelines of a drawing in order to place a dimension away from theview or at a more readable place; they…
Mechanical drawing
