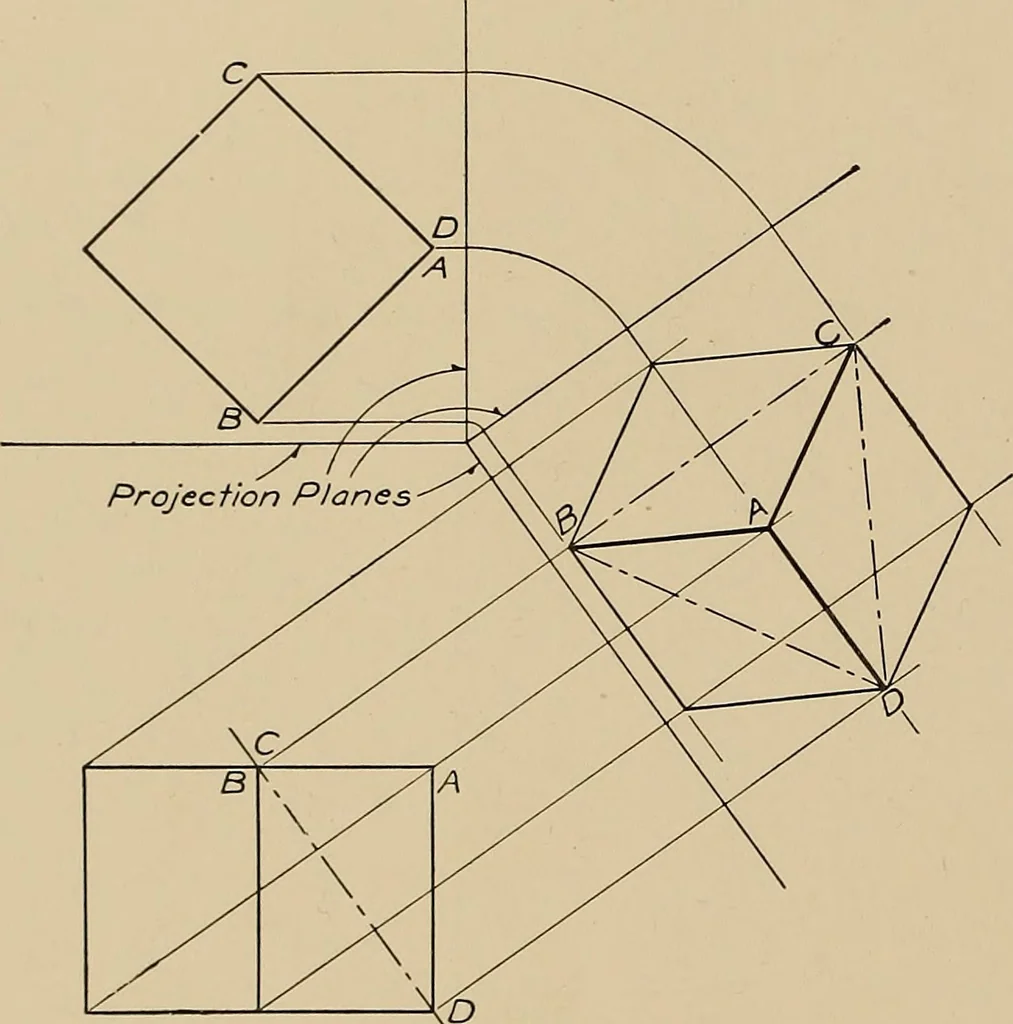

one in perspective and the other in isometric. \iewed through a plane ydxh which certain main features of the bodyare equally foreshortened. To illustrate, the cube shown in Fig.17 is tilted for«-ard until the edges A-B, A-C, and A-D are equallyforeshortened as seen through the plane. LESSON No.… … ^^Caffing PlaneFic. i8. space and correspond to the three dimensions, length, breadth,and height. Fig. 18 represents a two-view mechanical drawing of a cube, from which is projected (orthographically), an isometric view ofthe cube. This illustration shows the transformation from mechan-ical to…
