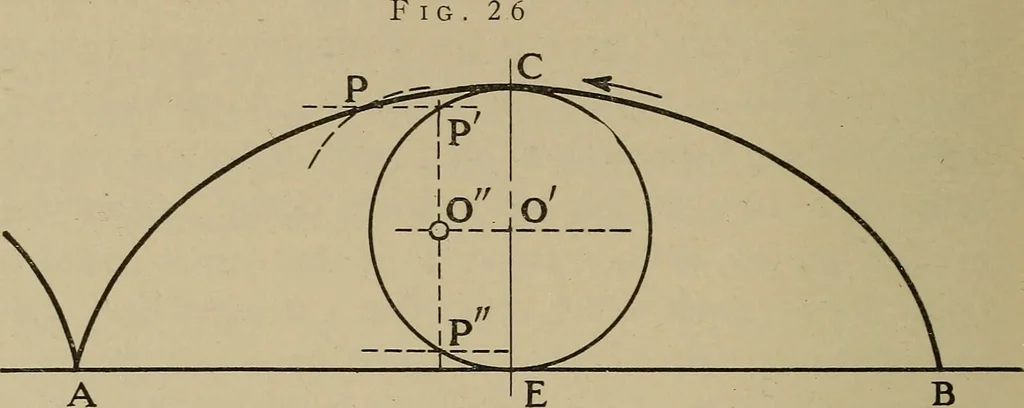

point, C, will have moved the distance towards thedirectrix that P is from it originally. Hence draw a lineparallel to the directrix through P, and with O^ as a centerand radius equal to the given circle, describe an arc to cutthis parallel in the point, P, which will be a point of thecurve. Repeat…
