Notes on practical mechanical drawing, written for the use of the students in general engineering drawing in the University of Illinois (1907)
Wilson, Victor Tyson, 1864- [from old catalog] · State College, Pa., The author · leaf 42

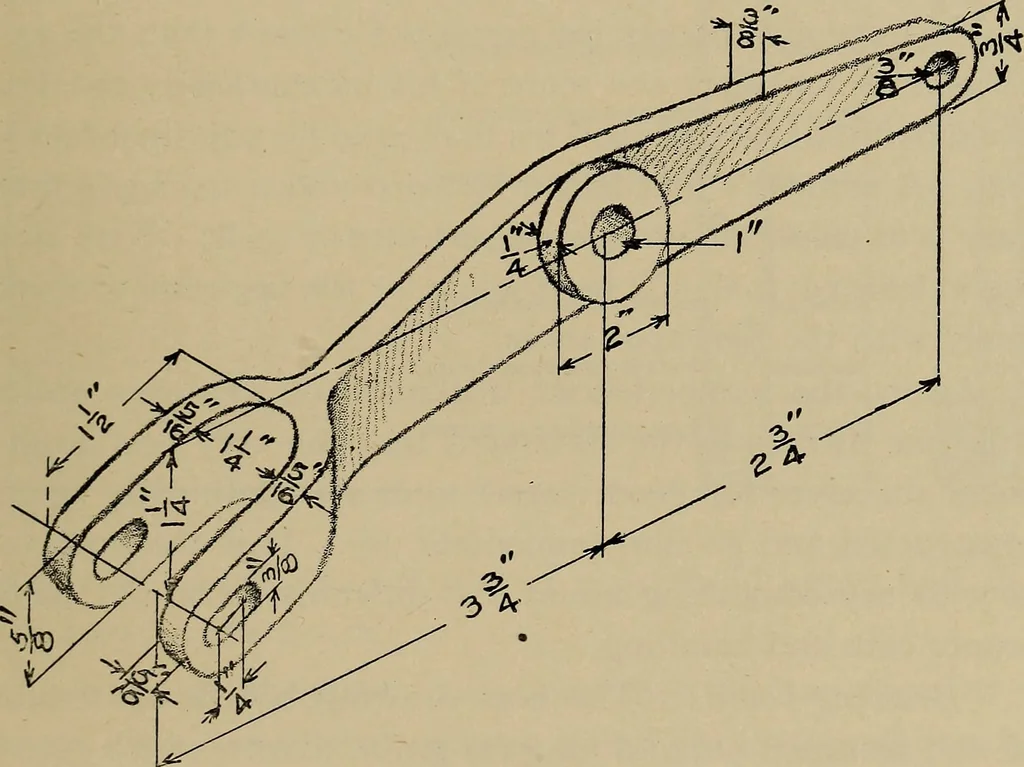

N ^^ Curves and Straight Lines Combined, and Sections 33 making them carefully full size, using the scale for layingout the sizes. Draw the horizontal and oblique center lines of bothviews first. Next draw the central boss and left hand endof the lower view or elevation. Then draw the fork of the… … plan view an(i project down to the elevation. Finish theelevation, then the plan. Put the dimensions on practicallywhere shown on the sketch. When ready to ink, draw^ the circular arcs first, then thehorizontal, vertical and oblique lines in order. Put in thedimension lines and figures the very…
