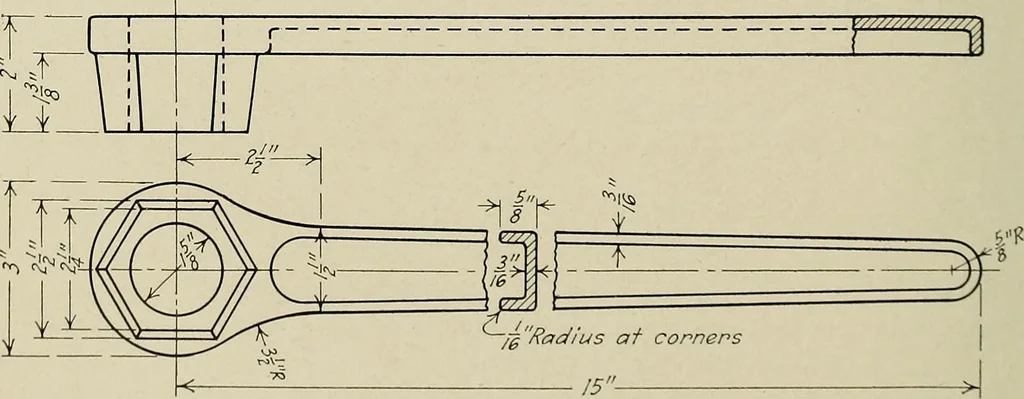

Fig. 59.—A half-section. … Plug Wrench Fig. 60.—A detail drawing. 45 is termed a line of intersection, such a line being common to both sur-faces. In representing an object by orthographic views it is frequently neces-sary to obtain the projection of such lines of intersection. In generalthis can be done by so passing a…
Mechanical drawing
