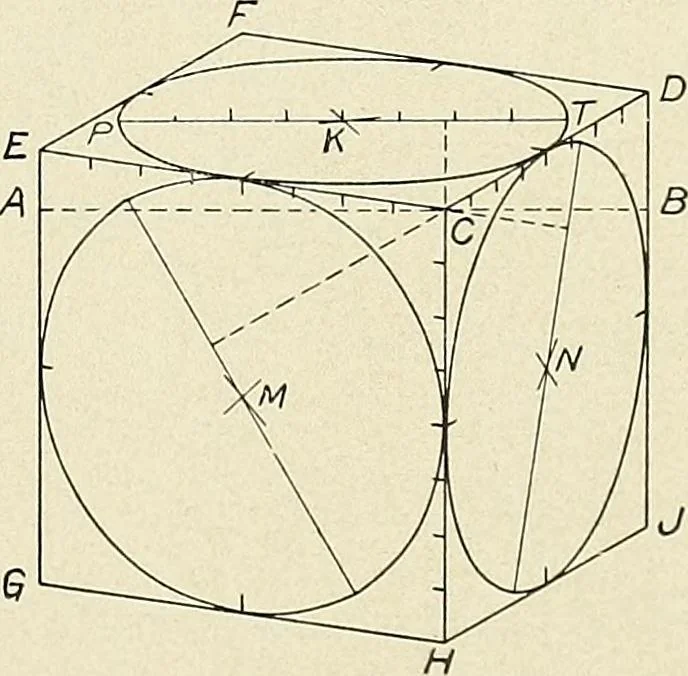

the projection of any other rectangular solid could be easilydrawn by imagining the object placed with its edges parallel to those 0 thecube. Direct comparison could then be made between the lines in theprojections of the two objects. A circle in any face of the rectangular solid would be… … Fig. 29. AXOMETRIC ShETCH TO Hey Cube.. 194. In Fig. 30 is a sketch made in the manner just outUned. The object is the Hoist Arm Yoke whosedimensions are given in Fig. 10. The drawing is made of small size by assuming that the reference cube used,that of Fig. 29, is 4 on an edge. At a point 0 draw…
