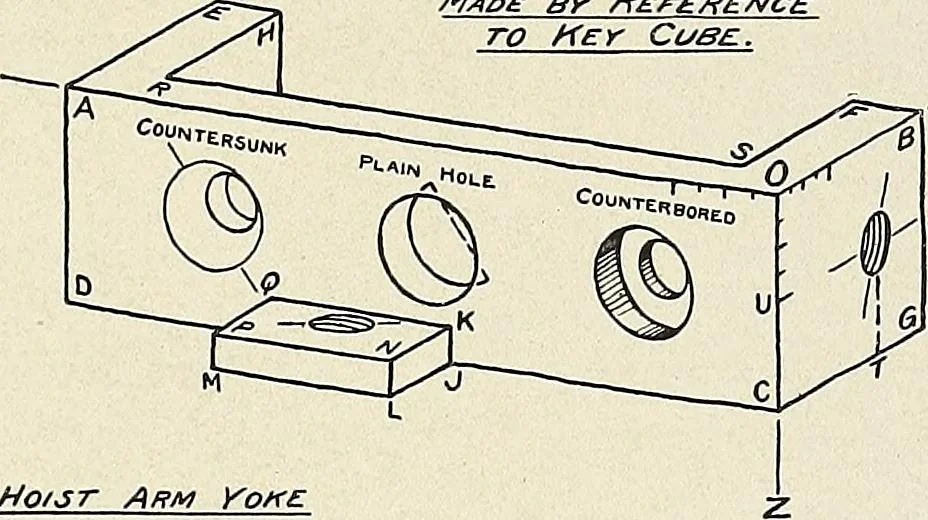

as that in the right faceof the reference cube. The hole in the ear is located and the ellipse drawn in a similar manner. Theshape of this ellipse will be like that in the top face of the reference cube and its major axis is perpendiculartoOC. The projection of any object, however complicated, may… … Hour Arm yoHE Fig. 30.
