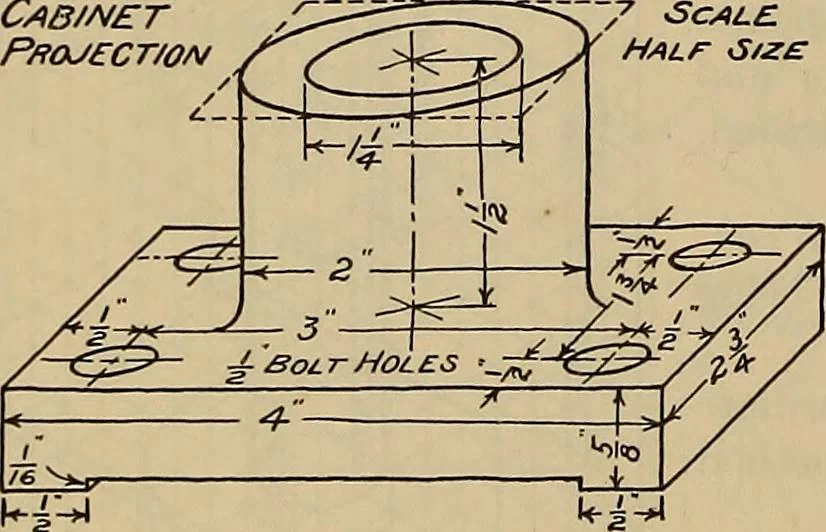

n its true size and shape. Lines perpen-dicular to this face are drawn at 45° and one-half their true length. A circle in the front face is therefore drawn as a circle, but in a side face it would be drawn as an ellipse. The method for the ellipse in the side face is shown in Fig. 4, A. Thecurve is… … 265. Fig. 47 shows a Cabinet Projection with completedimensions. 266. Oblique projections, similar to cabinet projections, arcoften used in which the front face is shown in its true size and shapewhile edges perpendicular to this face are drawn at any convenientangle and made any convenient length…
Mechanical drawing · Lettering
