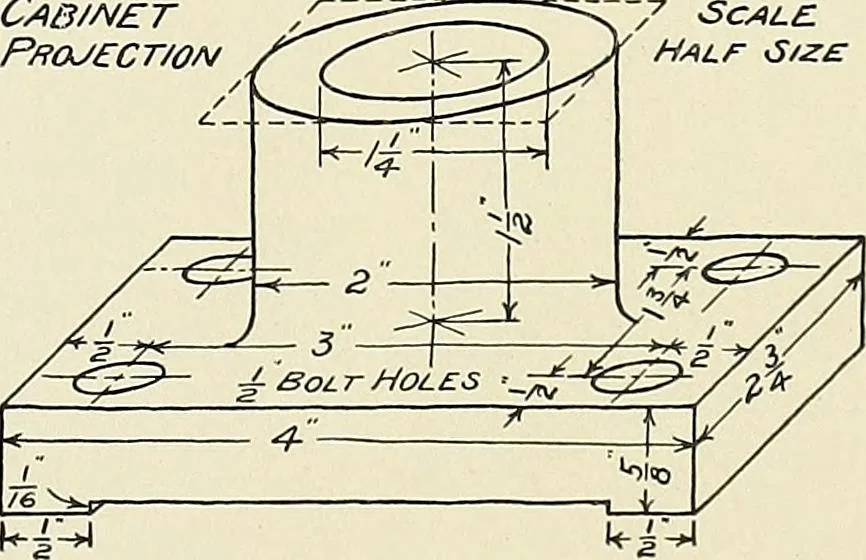

are found on the diagonals frompoints a and b in the front face. 221. dimensions. Fig. 36 shows a Cabinet Projection with complete 222. Oblique projections, similar to cabinet projections, areoften used in which the front face is shown in its true size and shapewhile edges perpendicular to this… … Fig. 36. 73 CHAPTER IX COMPARISON OF METHODS OF REPRESENTATION 223. The different methods of representation are not equally adapted to all purposes. The followingcomparison may not be agreed on by all draftsmen, but it is a fair statement. Isometric Projection is not con-sidered, as it is not used.…
Mechanical drawing · Lettering
