Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 200

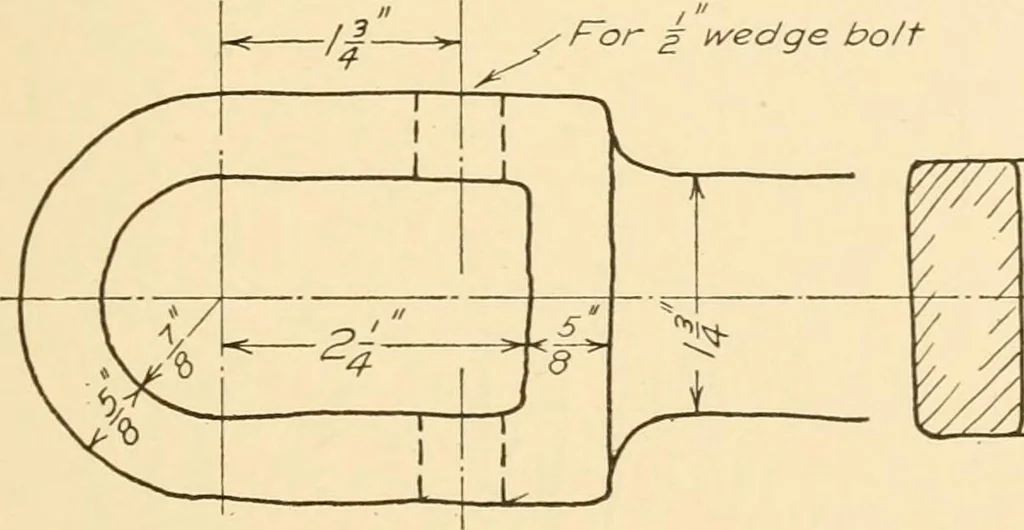

ll lines, but without all dotted lines.Select dotted Hnes in all views carefully, omitting such as tend to confuse. Showfront view in half section. Determine a few points in curve of intersection shown at Ain top view. PROB. 162, Figs. 316, 317, and 318.—Make a two view assembly drawing of… … Pbr £ bolKa ;!>
