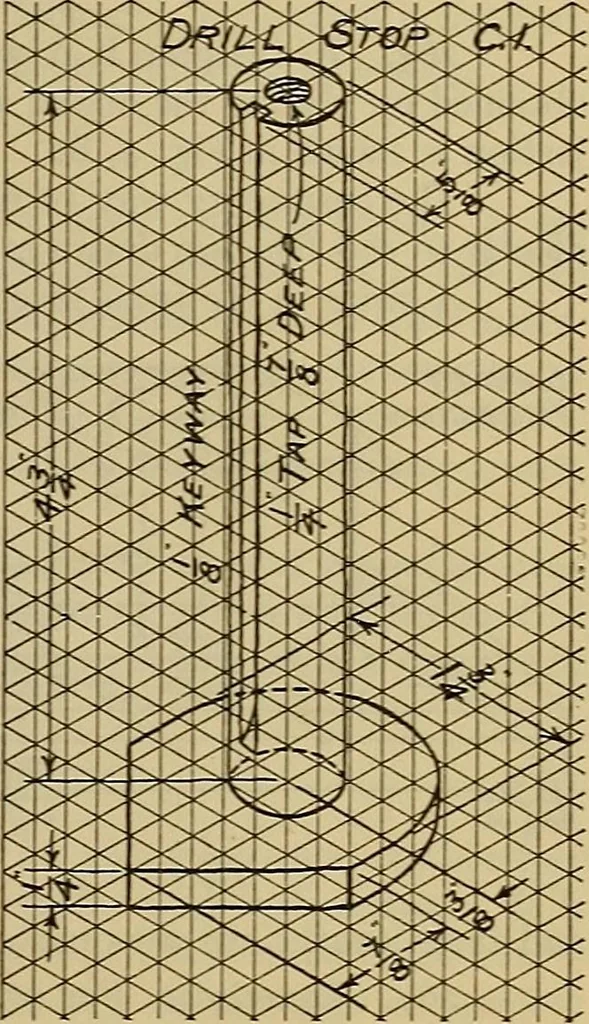

dicated bj- the dotted arc with G as a center. The approximate ellipse should never be used as an intermediateconstruction for getting other figuies. In the left face is shown a methodfor drawing irregular figures of any kind by plotting. 261. In Fig. 42, K, is shown an isometric drawing of a… … 100 Fig. 46 with complete dimensions. No explanation is necessary, beyond saying that ellipses should be drawnbefore the side lines of the cylinders. Such a drawing can be easily scaled. It is half size. 263. Exercises. For practice work on Isometric take the same drawings that are arranged for…
