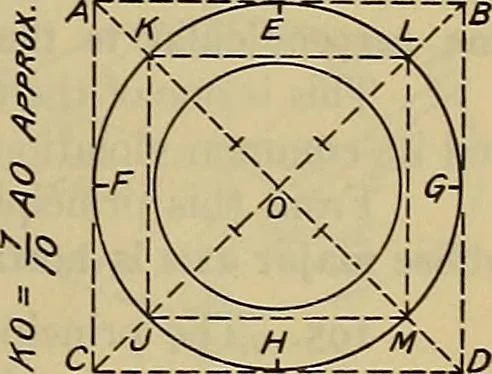

drawing their Their diagonals intersect at the center. Fig. 25. 191. After the rectangle, the circle is the com-monest figure with which the draftsman has to deal. Ifit is remembered, that it can be inscribed in a square, it … :tj^ will be easier to draw, whether it is shown as a true cucle or as an ellipse. In Fig. 26 a circle is shown inscribed in a square. It touches the sides atthe middle points. It cuts the diagonals at a distance from the center equalappi-oximately to j-jj of the half diagonal. To draw the circle,…
