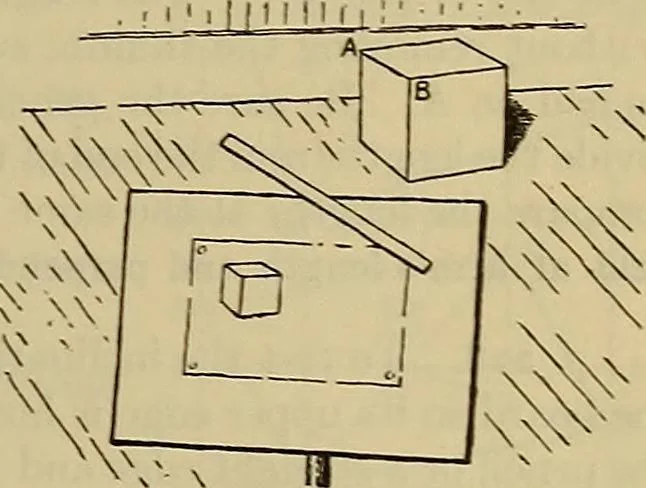

e. Havingdecided on their inclination, draw them, completing the top face. Next, estimate the length of the middle vertical, comparing with the horizontal width of the right face,its length and draw the bottom edges of the side faces in the same way as the top edges. The drawing should look prettj^… … Fig. 37. Mark 86 Remember that it is the apparent lengths and not the true lengths of lines of the object which are to becompared. To compare lengths of the front edges of the top face, sit in the same position as when drawing them.Grasp the pencil at one end by the fingers of the right hand,…
