Notes on technical sketching and free hand lettering for engineering students (1912)
Smith, Alton Lincoln, 1867- [from old catalog] · Worcester, Mass., The author · leaf 104

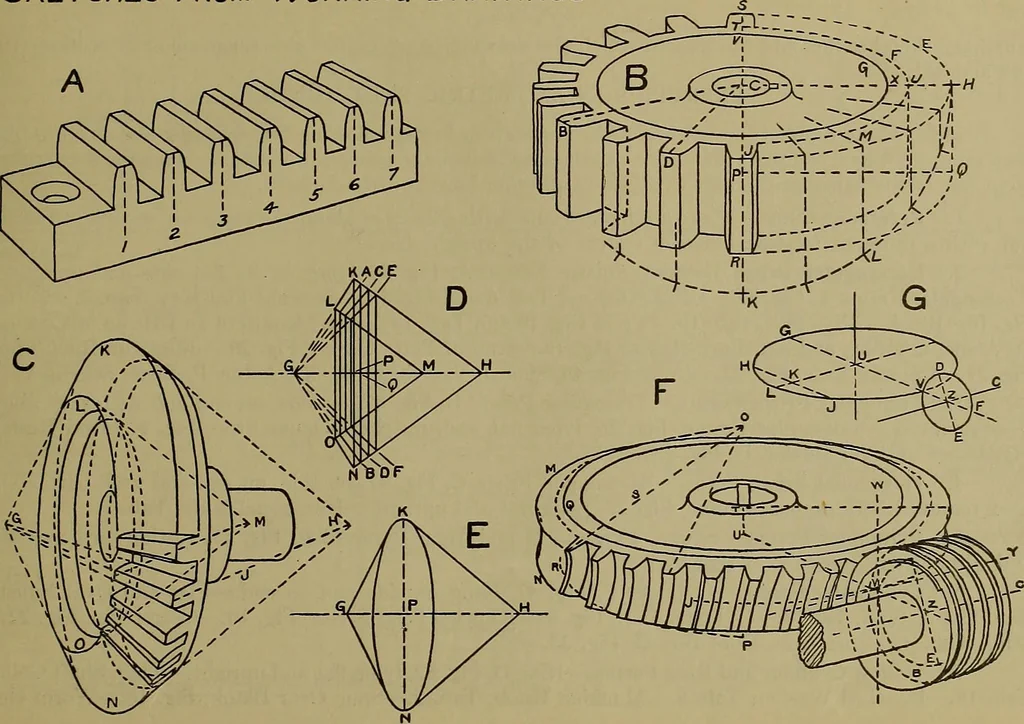

d that he can introduce the perspective as he draws his lines. In other words, he has learned tomake a perspective sketch of an object not before him and can therefore reproduce in this way what existsonly in his mind. Such ability is of the highest value to the designer. 257. In Fig. 46 are rapid… … Fig. 46 102 Auxiliary sketches indicate the way in which the drawings were built. See suggestions in Sections 198,199 and 251. EXERCISES IN AXOMETRIC SKETCHING 258. Make Axometric sketches of the parts given in the following list, selecting one or more fromeach group. Where complete dimensions are…
