Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 188

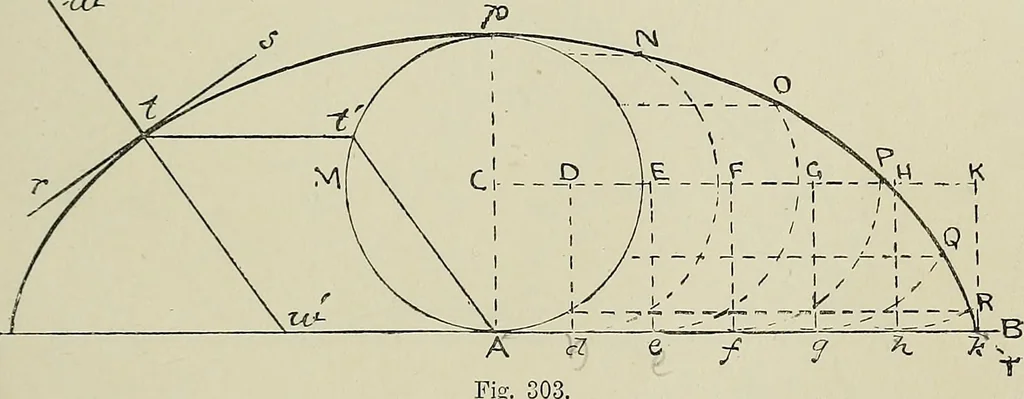

aw a cycloid. Let AB be the director, and p the generator or point in therolling circle AM|?. Draw AB equal in length to half thecircumference of the circle AM^, and divide it into any numberof equal divisions (Prob. 10), say six, d, c,f, g, h, and h Dividethe semicircle into the same number of… … the points d, c, f, g, h, and k till they meet the line CK in thepoints D, E, F, G, H, and K. With each of the pointsD, E, F, Gr, H, and K as centres, and a radius equal to C^,draw arcs cutting the parallel lines drawn from the divisionsin the semicircle in the points IST, 0, P, Q, E, and T. This…
Geometrical drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
