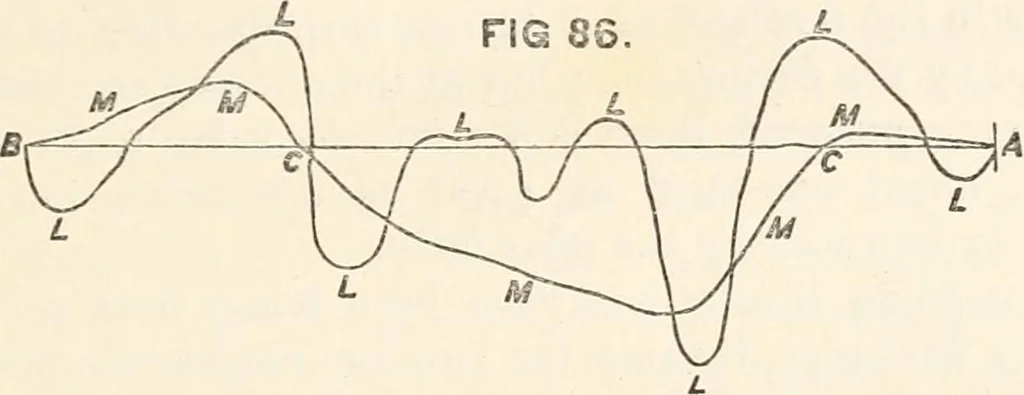

thepilot-tower. Under the after turret, another large excess of weightoccurs—320 tons on 38 feet of length ; followed by a still hu-gerexcess of buoyancy—570 tons on a length of 63 feet; thence tothe stern there is an excess of weight of 170 tons, owing to thefineness of the form of the ship in the… … by the curve MIMM, and offer a remarkable contrast to those forthe Minotaur (see MMxM, Fig. 84). For the first 50 feet fromthe bow there is scarcely any bending moment to be resisted illthe Devastation; whereas in the Minotaur the moment at thecorresponding part amounts to about 8U00 foot-tons. At…
