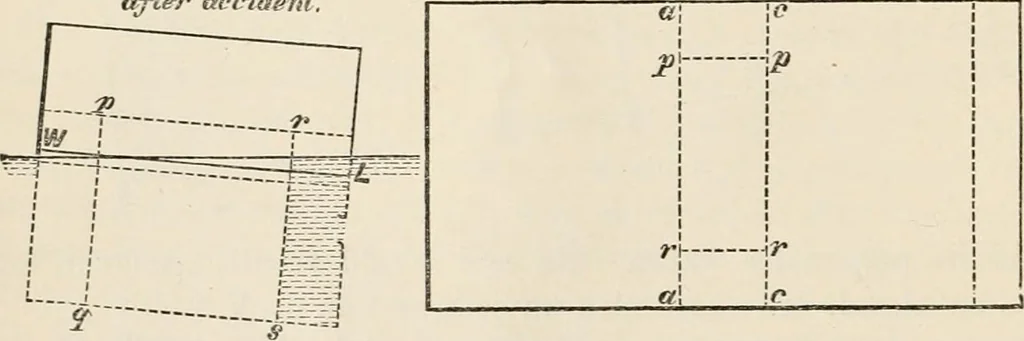

bulkheads, ah and ce (in profile view), to besubdivided by longitudinal bulkheads, fq^, rs (in section) ; inthe positions shown, these longitudinal bulkheads fairly representthe coal-bunker bulkheads of an ironclad, being rather less thanone-fourth of the breadth of the ship within the side. The… … and rr in plan, Fig. 14, may be supposed to contain three-sixteenths of the total volume of the compartment between thetransverse bulkheads ab and ce; reckoning up to the load-lineWL, this will give, Loss of buoyancy when wingj compartment is filled 1 = /g X f total displacementwith water ) = jf 2…
