Old cottages & farm-houses in Surrey / illustrated on one hundred collotype plates from photographs specially taken by W. Galsworthy Davie, with an introduction and numerous sketches by W. Curtis Green (1908)
Green, W. Curtis (William Curtis), 1875-1960, Davie, W. Galsworthy · London : B.T. Batsford · leaf 38

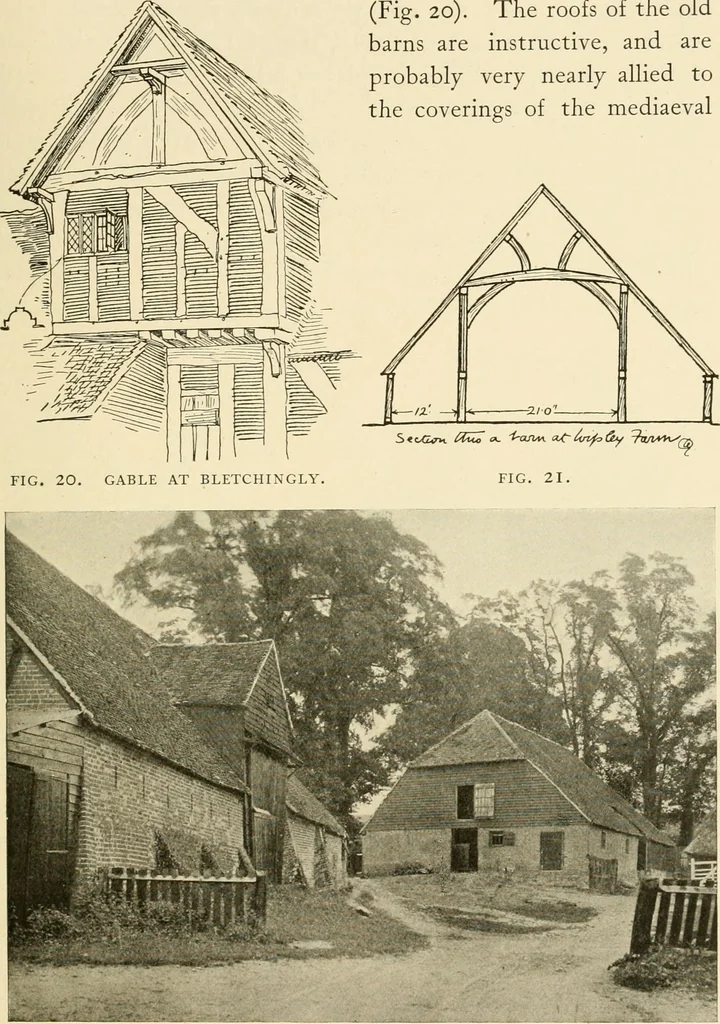

Hurl Jkoun aJC fi FIG. 19. Godstone shown on Plate xliii. In these a collar beam constructionis observed, the collars supported by a purlin which is strutted upfrom the summer beams holding the wall plates. The gable atBletchingly illustrates the same kind of construction, exposedto view on the… … *: FIG. 22. WIPLEY FARMYARD, NEAR NORMANDY. 22 OLD COTTAGES AND FARM-HOUSES hall (Figs. 21, 22). The cottages generally show a simple collarbeam construction without a truss, though I speak with diffidence,for after getting upstairs the plaster ceiling often defies investi-gation of the…
Architecture, Domestic
