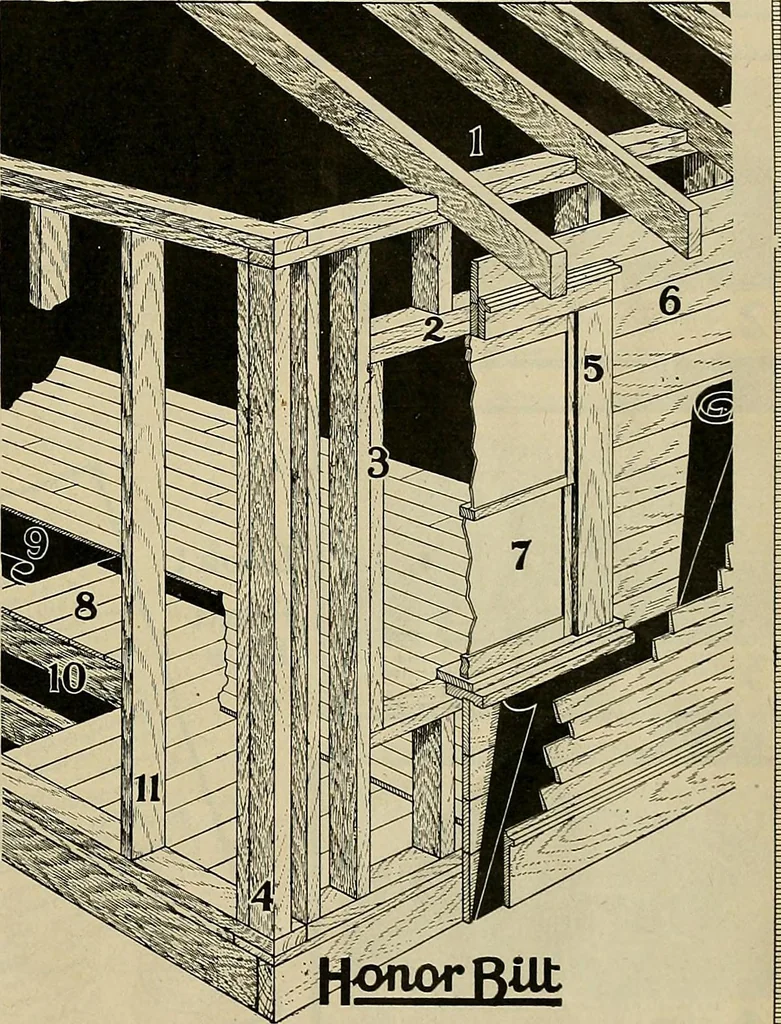

1.2.3. 4.5.6.7.8-9. 10.11.12.13. LIGHTER BUILT Rafters, 2x4 inches, 34^ INCHES APART. SINGLE PLATES over doors and windows. SINGLE STUDDINGS at sides of doors and windows. TWO STUDS at corners Outside casing, % INCH THICK. NO wood sheathing. All glass, SINGLE STRENGTH. NO SUBFLOOR and NO BUILDING… … 1. Rafters, 2x4 inches, or larger where needed, 14Ji INCHES APART. 2. DOUBLE PLATES over doors and windows. 3. DOUBLE STUDDINGS at sides of doors and windows. 4. THREE STUDS at corners. 5. Outside casing. IH INCHES THICK. 6. High grade WOOD SHEATHING 7. All glass 24x28 inches and larger is HIGH…
