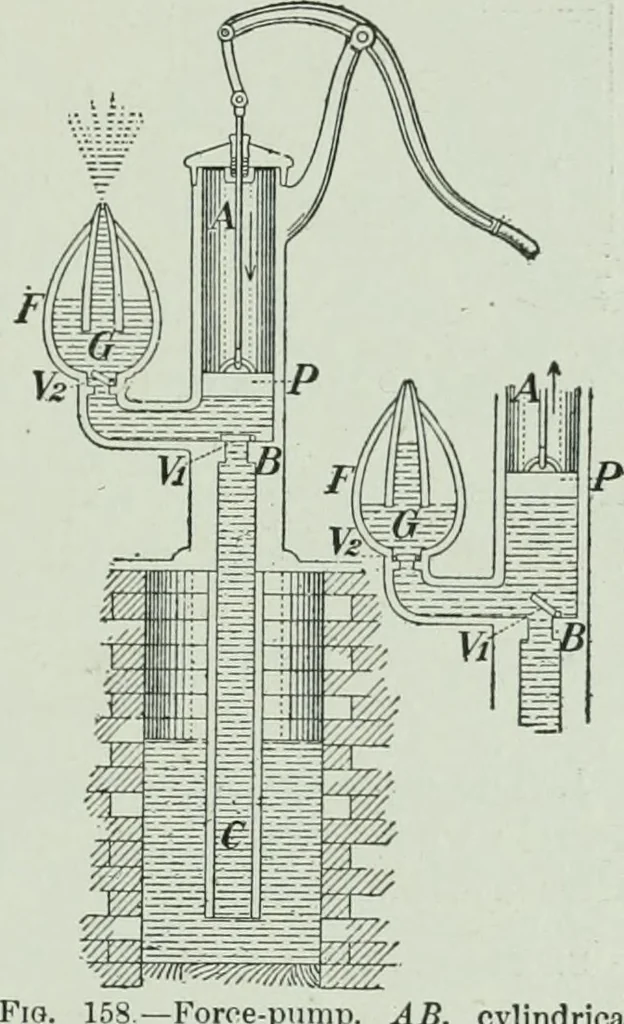

charge pipe. The flow willobviously be intermittent, as theoutflow takes place only as the plunger is descending. Toproduce a continuous, stream, and to lessen the shock on thepipe, an air chamber, F is often inserted in the discharge pipe.When the water enters this chamber it rises above the… … 158—Force-pump. AB, cylindricalbarrel; BC, suction-pipe ; P, piston ; F,air chamber ; V,, valve in suction-pipe ;Tj, valve in outlet pipe; G, disnharg:epipe ; R, reservoir from which water istaken. 128 APPLICATIONS OF THE LAWS OF GASES 144. Double Action Force-Pump. In Fig. 159 is shownthe…
