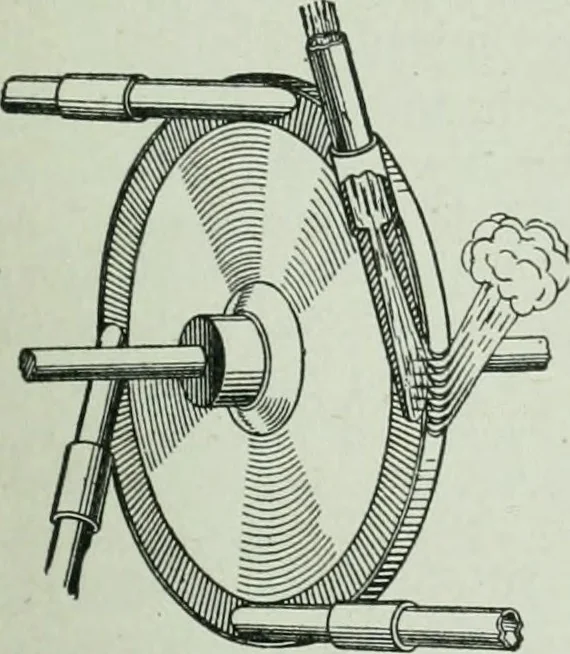

he next, whichis of wider diameter, and so on until itfinally escapes into a condensing cham-ber connected with the last cylinder. The compound engine is used mainlyin large power plants and for marinepurjioses, when economy in fuel con-sumption is a first consideration, 307. Turbine Engine. Lately… … Fio. 296.—Action of steam on theblades of the drum in a turbineengine. outer surfaces as shown (Fig. 296). 270 HEAT AND MECHANICAL MOTION In another type of turbine, nozzles and blades are so adjustedthat the steam after striking the first series of blades is reflected bya similar series of…
