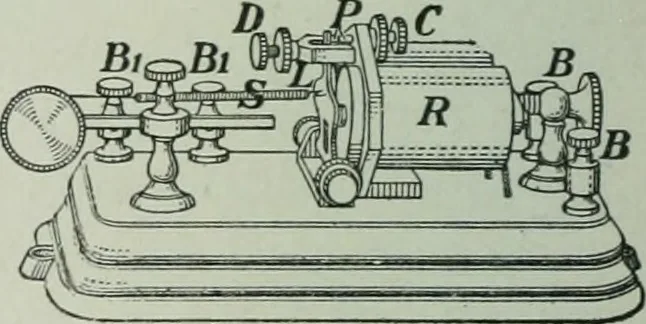

carrying a soft-iron armature, which is held a little distance from tlie poles by the spring S. Platinum contact points, P, are connected with the lever L and the screw C. The ends of the wire of the electromagnet are connected with the binding posts B, B, and the lever L and the screw G are… … Fig. 519.—Telegraph relay. INSTRUMENTS IN A TELEGRAPH SYSTEM 429 511. Connection of Instruments in a Telegraph System. Fig. 520 shows a telograpli line passing through three offices ^gaf.
