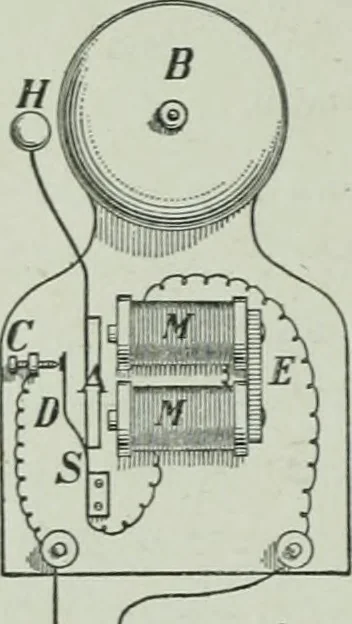

omagnet M,M,E, in fi-ont of the polesof which is supported an armature A bya spring >S^. At the end of the armatureis attached a hammer H, placed in such aposition that it will strike a bell B whenthe armature is drawn to the poles ofthe magnet. A current breaker, consistingof a platinum-tipped… … Fio. 521.—Electric bell and its connections.At G is shown a section of the push-button. The figure shows the bell whenthe button is not pressed. The currentmay pass in either direction through thebell.
