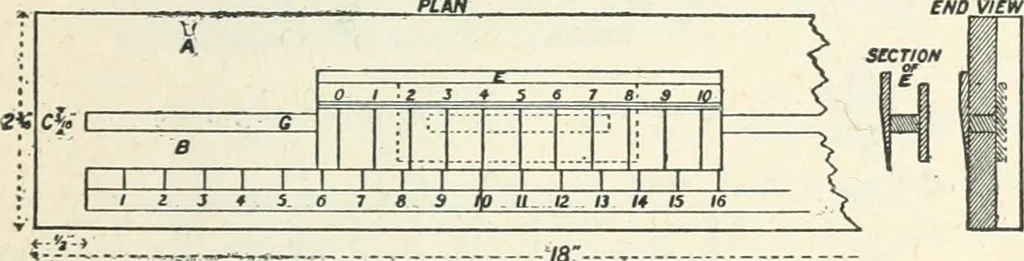

APPENDIX. MANUAL TRAINING EXERCISES IN THE CONSTRUCTION OFAPPARATUS REQUIRED IN THE TEXT. 1. Scale and Vernier. The baseboard is made of two strips, A and B,separated by means of a ^V strip inserted at each end,as at C. Battens D are nailed across the under-side ateach end. … ,-..-.--__. -78 sioe ELEVA-ndN 3 The sliding piece E is made of two thin strips joinedby a strip the thickness of A and the width of thegroove G; the upper piece is bevelled and graduated. 2. Dissected Litre Block. Make a box 10 centimetres long, 10 wide and 9 deep,using wood 1 cm. thick. Make a…
