Patentees and makers of machinery : on the latest and most approved principles for preparing, spinning & doubling, cotton, cotton waste, wool, worsted, silk, and bigonia yarns (1900)

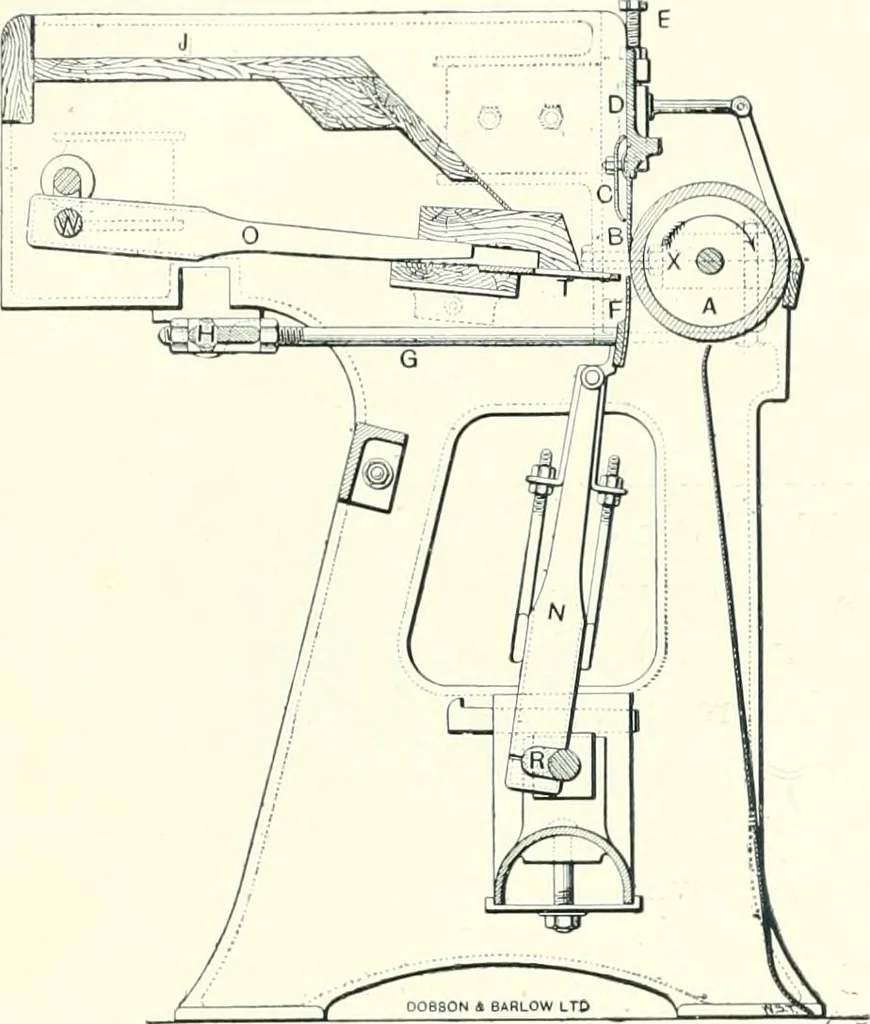

the Gins are packed up level where thefloor is uneven. Set the Gins parallel with the driving shaft ; if thisbe not attended to the straps will not run straight on the pulleys. 2.—See that the speeds are right. The speed of the leather roller should be 150revolutions per minute. The speed of the… … SINGLE ACTION MACARTHY GIN. A.B.C.D. E.F. G. H. J. N. 0. R. T. W X. Leather Holler. Doctor Kuife. Spriugs. Doctor Kuife Rail. Adjusting Screw for Kuife Rail. Beater Kuife. Bar.„ Centre.Feed Table. Coiniectiug Rod for Beater Knife.Feeder Bar. Craul; for moving Beater Knife.Grid. Crank for Feeder…
Textile machinery
