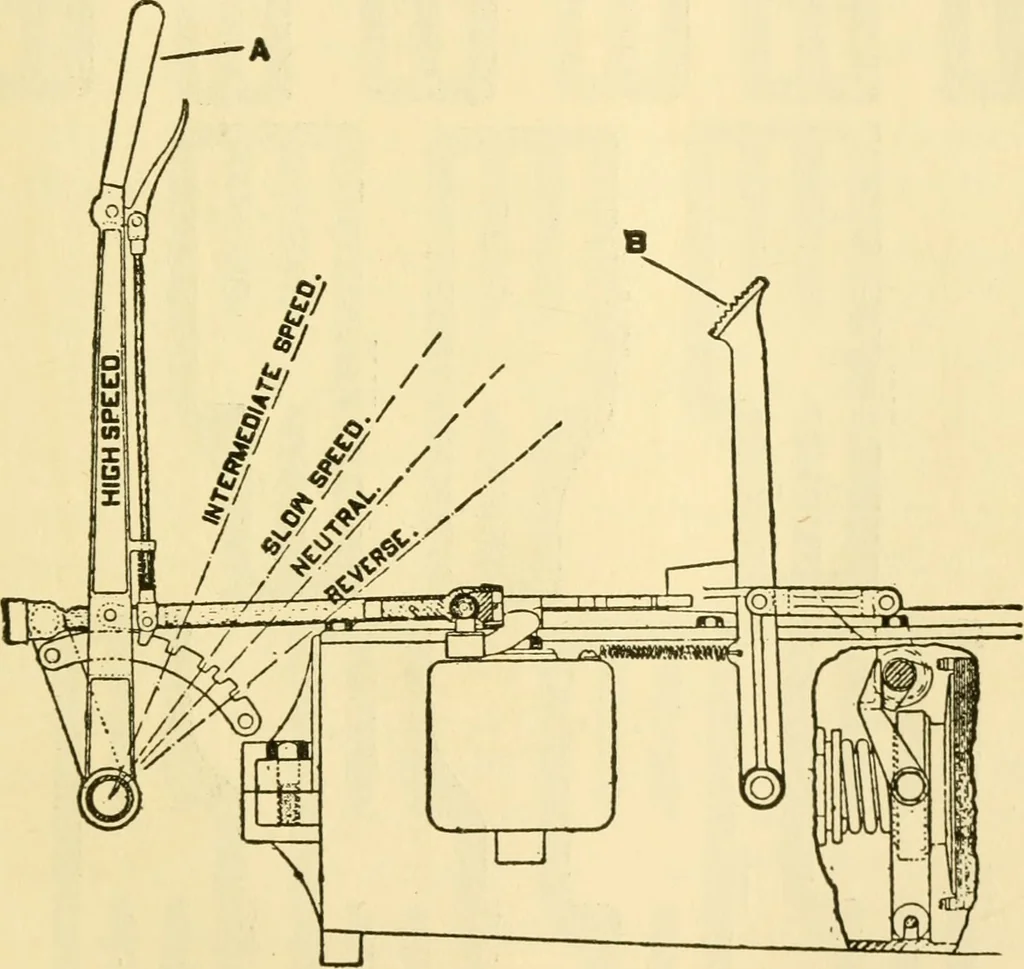

With this type of change speed gearing, a simpleHnear movement of the lever is sufficient to affect the HOW TO RUN AN AUTOMOBILE 437 different gear changes, the lever being rotated through theproper arc, as shown in fig. 335, the positions for the differentspeed changes are shown by the dotted… … Fig. 335.—The Maxwell transmission lever, showing the several positionsof the lever in making the speed changes. The transmission is of the progres-sive type. and a lateral movement; a compound form of segment,known as a selector is required. Ques. Describe a selector. Ans. This is simply a…
