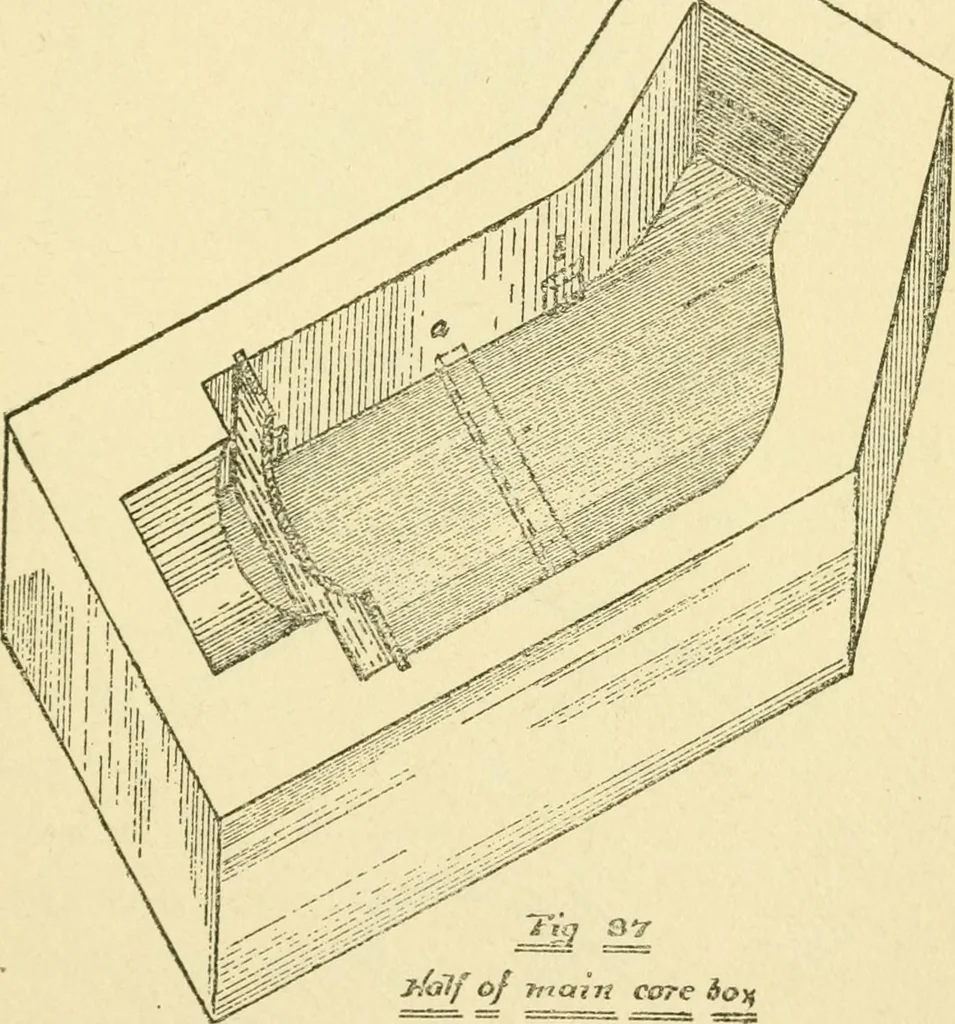

Heitt slides, projections, etc., that may be required bythe nature of the work. A rather neat piece ofwork is a double-flanged elbow for a steam pipe,as shown in Fig. 88. Assuming this to be for asmall pipe, say 4-inch, it becomes a simplepiece of lathe work. Having made a proper AND FOUNDRY… … cross-section, as shown in Fig. 90. This ring isthen cut into quarters, two of wliich make theprincipal part of the pattern. Next turn up twopieces (see Fig. 91) in two parts each. These, 128 PATTERN MAKING when doweled to the quarter circles alreadymentioned, make the desired pattern, as shown
