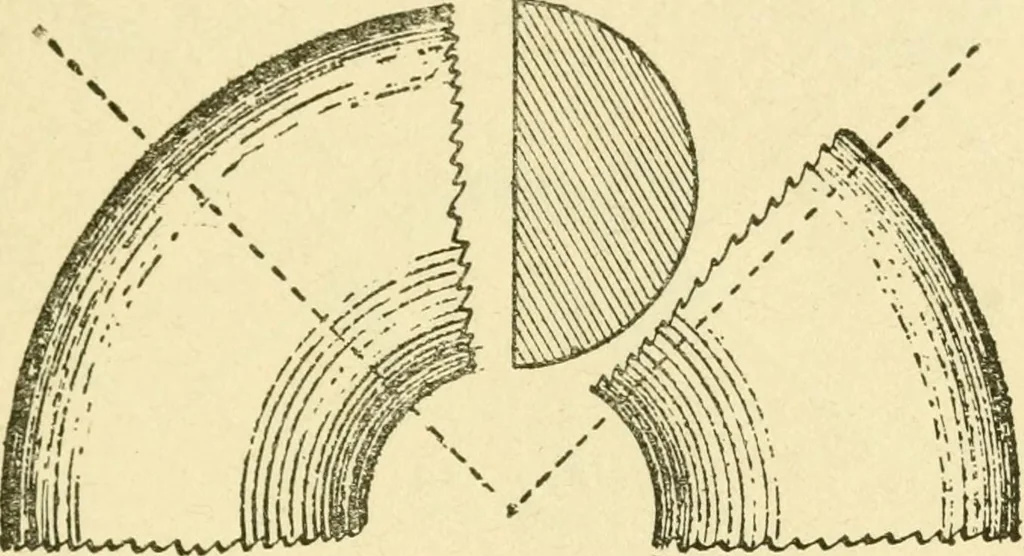

*rh€ Worlii-n^ SiraWiii^ for pijae ^boW this pattern, take a piece of stuff of properdimensions and into the face turn a semicircular AND FOUNDRY PRACTICE 129 groove of the radius desired. Cut this plank inquarters, using one of the parts for the curved … portion of the box, which is finished by gluingon strips in which proper semicircular notchesare cut, and with additional strips for closing theends of the box. Thisis clearly illustrated inFig. 93. As the corebox is alike at bothends, the core will re-verse and glue together;therefore a single box…
