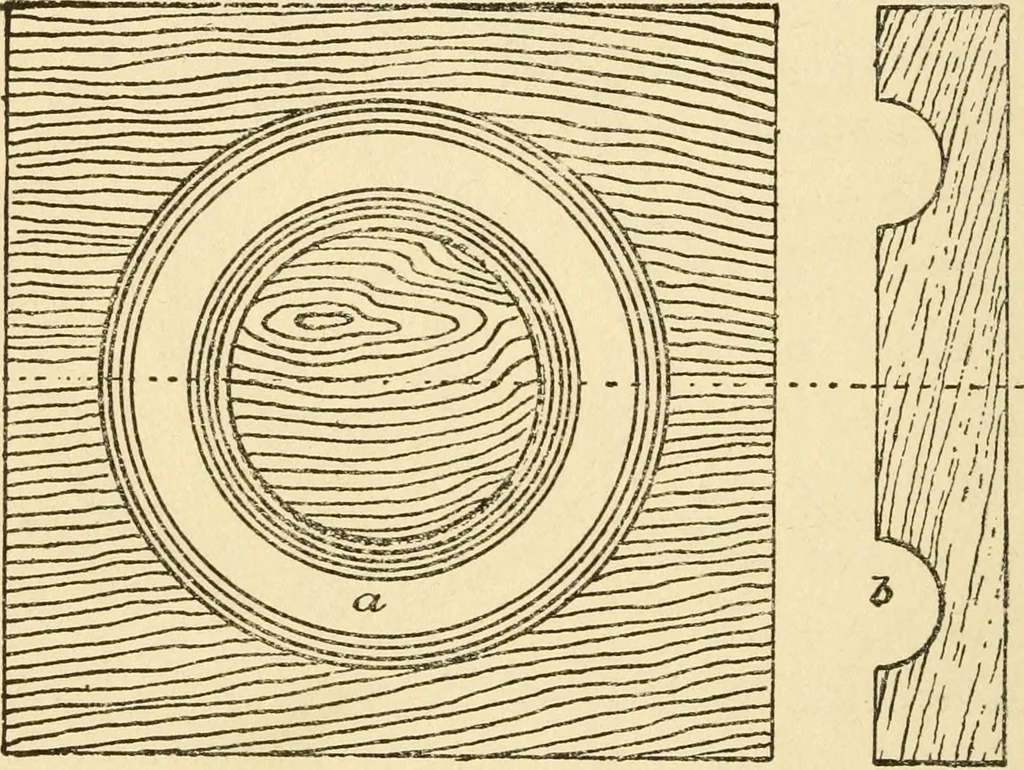

7^^ 3/r 70 PATTERN MAKING intricate task and is clearly illustrated in Fig. 36,which contains a sectional view of the finishedpattern. To make this pattern, cut out the discs a a.Fig. 36, of proper size for turning up. To these … T^a7fC f oj tvrrnTto co-re hote for Tiq 30 discs glue the band h in sections, and to one discthe core print c. Next attach the prepared discsto the lathe and turn up, as shown in cross-sec-tion, Fig. 36. Turn up two core prints, d d,and dowel the two halves together, making thefinished pattern. AND…
