Pattern-making machinery manufactured by Richards, London & Kelley, Atlantic works, Philadelphia (1873)
Richards, London & Kelley, Philadelphia. [from old catalog] · [Philadelphia, Gillin, M'Guigan & White, steam-print.] · leaf 27

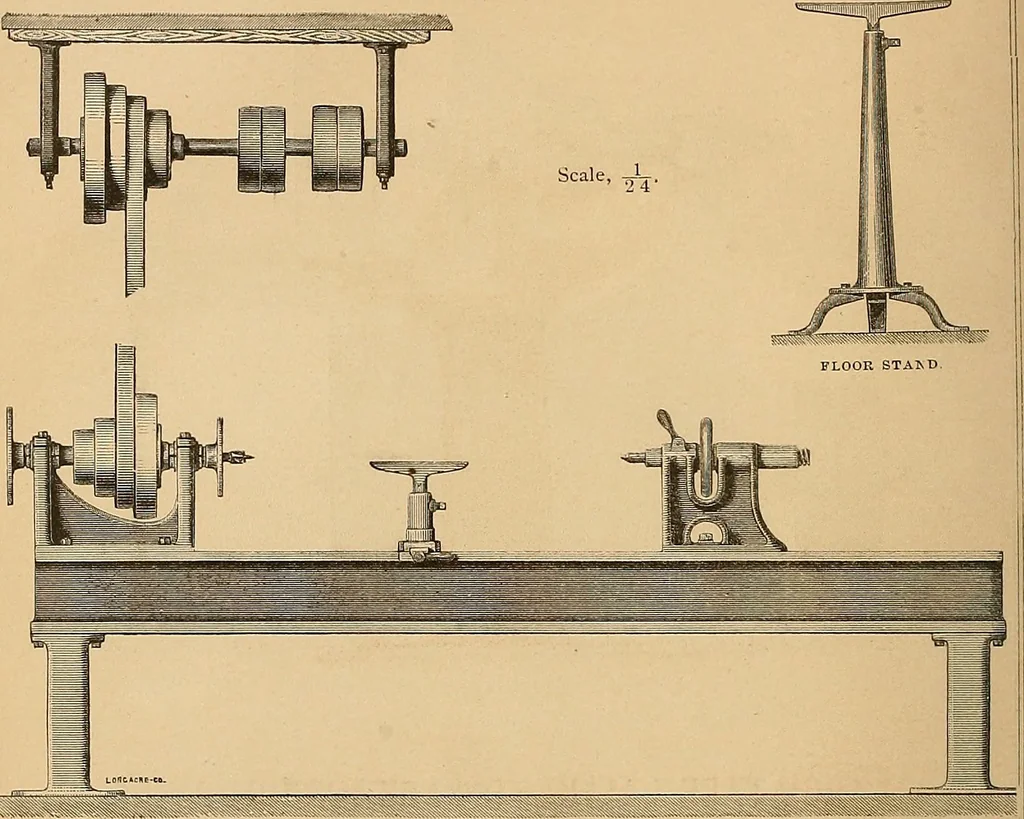

ttached to the main frame, that isarranged to be swung out of the way for mounting large pieces. The main frame being cast in one piece, and the whole machine self-contained,no special foundation is required. The countershaft is placed in the main frameas shown in the engraving, or is furnished… … PATTERN TURNING LATHE. A strong durable Lathe, with a rigid iron frame, provided with face platesat each end of the spindle ; turns to 28 inches in diameter over the frame, and toany length that may be ordered. The thrust is taken up in the bearings by aseries of collars; the spindle is of steel,…
Patternmaking machinery
