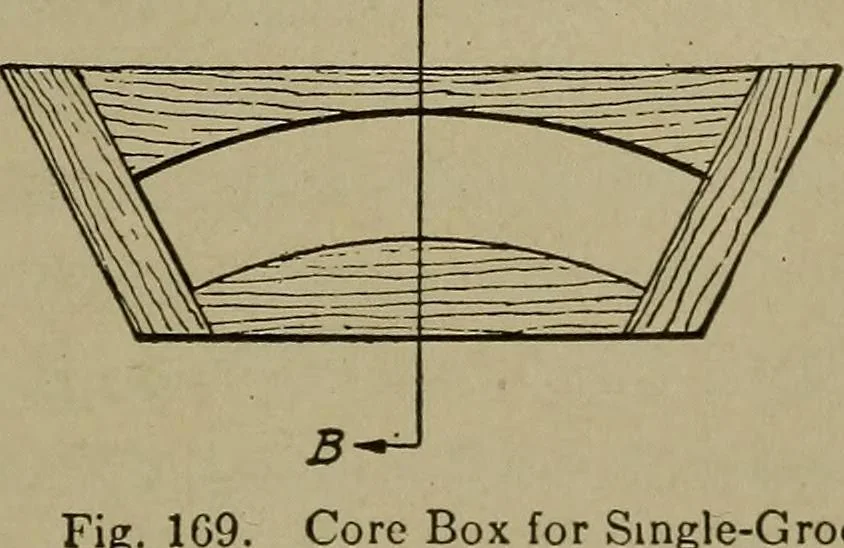

de in one pieceand the groove is coredaround the rim, as illus-trated in Fig. 167, witha wide core print cc ex-tending entirely around theperiphery of the pattern. Segment Core. A segmental core box is made for one-sixth orone-eighth the circumference of the wheel, as shown in Fig. 169, andhere… … m i \ Fig. 1G9. Box for Single-Groovi Section R-BRope Sheave 90 PATTERN MAKING and remain in position without tilting while the metal is beingpoured into the mold. Hand Wheel Conditions. The 12-inch hand wheel, Fig. 170, with five armsand a round rim finished to 1§ inches in diameter, will also…
