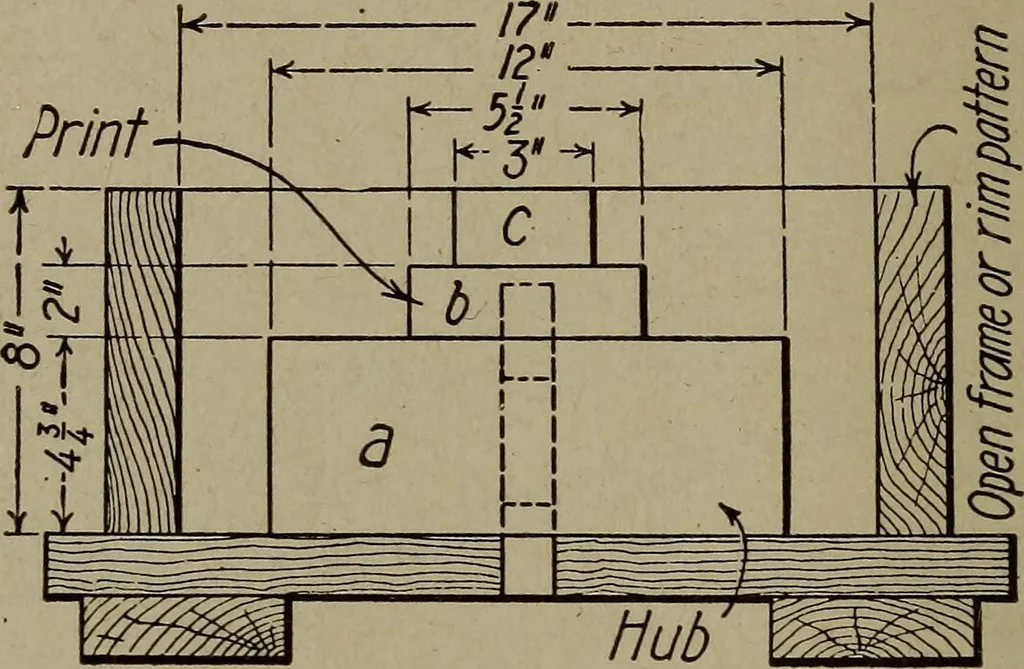

the fillet on a had best be carved after the assembly. Trim sectiona at d to make the round beading between the arms, and trim a at/to a half ellipse. The rim end of the arm pattern c and its parts c and c areconstructed by the same process, fitting the pieces of stock into the 108 PATTERN MAKING… … Fig. 188. Section of Hub Core Box The arm b is planed to the required form of half the arm. Thesethree parts are shellacked in the same manner as described before,and are fastened into the core box with wood screws. Be sure thatthe arm is central in the core box.
