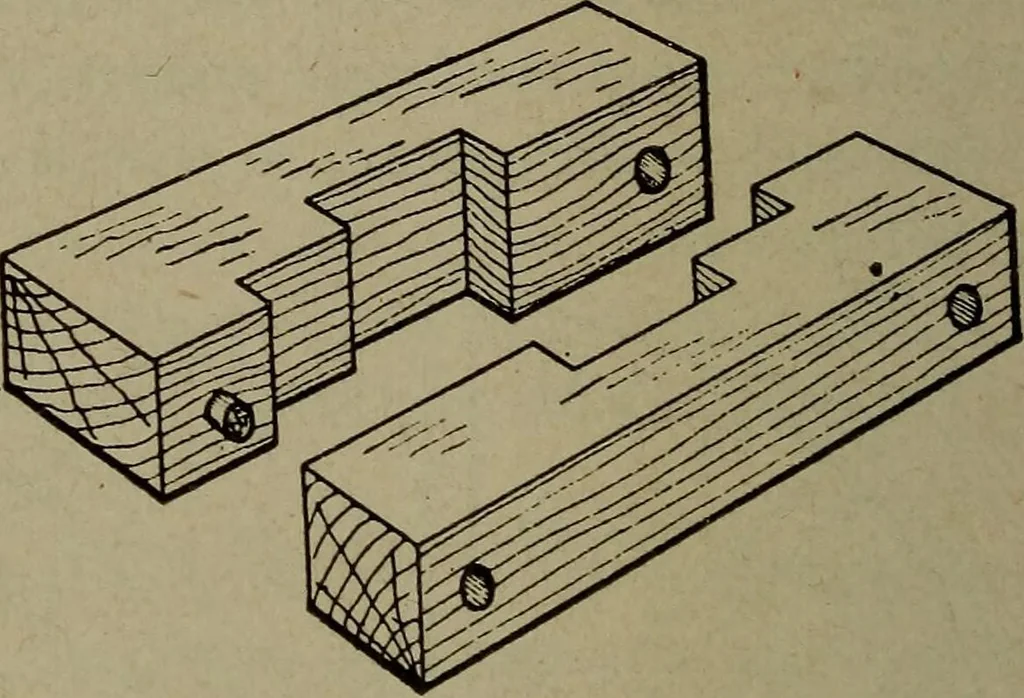

Fig. 199. Section of Pattern for Faceplate, Fig. 19S Fig. 200. Core Box for Faceplate Slots diameter is more than two feet, the grain of stock used in theweb should be parallel to the radius. Each sector as it is fittedshould be screwed to the wood faceplate, leaving a space of -^ inchbetween each…
